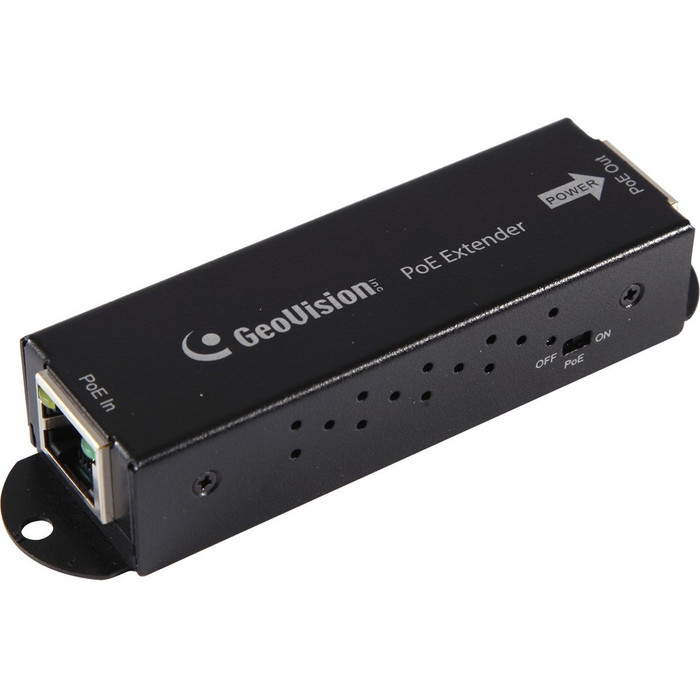

GV-POEX0100 is a single-port, 10/100 PoE extender that can extend the distance between a PoE switch and a GV-IP Camera by 100 m (328.08 ft) for every extender installed. They can be serially connected, with no additional power supply, to transmit power and data to a GV-IP Camera as far as up to 600 meters (1968.5 ft) away from a PoE switch.
- SKU:
- 1029729255
- GV-POEX0100 One-Port PoE Extender
- 2 x Screw
- 2 x Screw Anchor
- GV-POEX0100 Installation Guide
Network Standard 10/100 Mbps half/full duplex
Connectors RJ-45
Network cables Cat5e or higher
Mechanical
LED Indicator 4 LEDs:
Power x2, Network x2
Power indicator: PoE enable (Amber)
- GV-BX2510-E / 5310-E
- GV-FE3403 / 5303
- GV-VD2540-E / 5340-E
- GV-SD220 / 220-S
- GV-POE0801 / 1601 / 2401 (V1.03 or later)<
