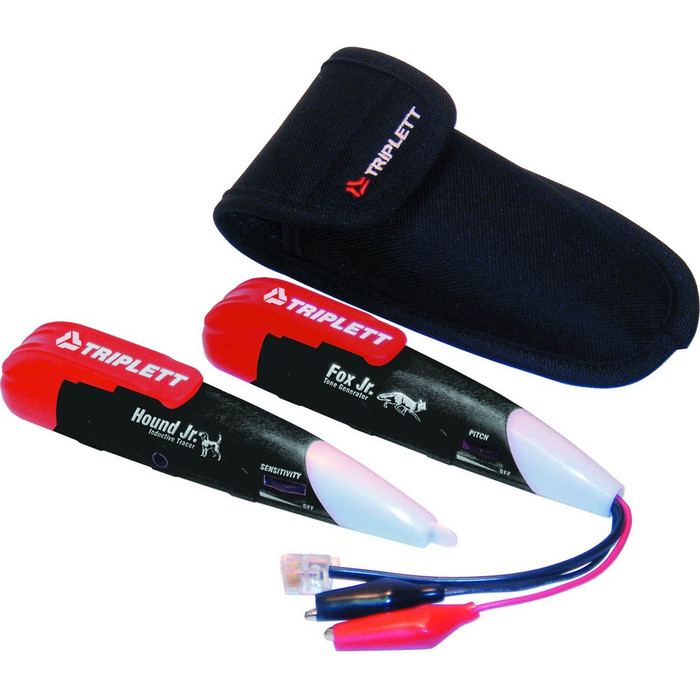

The Fox and Hound Jr wire tracing kit for security, thermostat, data, telephone,audio and other types of wiring. It consists of the Fox Jr Tone Generator and the compact Hound Jr Inductive Amplifier Probe. The Fox Jr is a battery operated Mobile multi-function Toner that generates a Warble tone with a user adjustable pitch. It connects easily with alligator clips or RJ-11 / RJ-45 combo pluga and has 120VAC line cross protection. The Hound Jr is a battery operated Mobile lightweight Probe, with a thumb-wheel Sensitivity control and Signal Strength indicator LED that can detect trace tones up to 12" away. It has a built-in earphone jack that will automatically mute the loudspeaker for use in quiet or noisy areas. Comes complete with (2) A23 batterries. 1 year warranty.
-
SKU:
- 1018206770
Manufacturer:
Jewell Instruments
Manufacturer Part Number:
3375
Manufacturer Website Address:
http://www.jewellinstruments.com
Brand Name:
Triplett
Product Line:
Fox and Hound Jr
Product Name:
Fox and Hound Jr Compact Tone & Probe Kit
Product Type:
Cable Analyzer
Device Function:
Cable Tracing
Network (RJ-45):
Yes
Number of Batteries Supported:
2
Battery Size Supported:
A23
Battery Included:
Yes
Input Voltage:
120 V AC
Height:
10.5"
Width:
2.5"
Depth:
5.8"
Weight (Approximate):
2 lb
Package Contents:
- Fox and Hound Jr Compact Tone & Probe Kit
- 2 x A23 Batterries
Limited Warranty:
1 Year
sku variation:
The Triplett 3375 is also known as TRI-3375 or 3375
Brand Logo:
https://content.etilize.com/Brand-Logo/1018206770.jpg
Short Description:
Triplett, Compact Wire & Cable Tracing KIT With Alligator Clips AND RJ-11/RJ-45 Connections. Tone Generator Provides Distinctive Adjustable Warble Tone AND Tracer Provides Visual AND Audible Signal S
User-Manual:
https://content.etilize.com/User-Manual/1018206770.pdf
