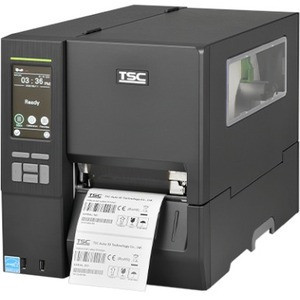

The MH241 Series is TSC's mainstream industrial barcode label printer built upon the legacy of the MH240 Series. It brings new features to those looking for solutions to address evolving business challenges from growing production line demands to increasing operational complexities.
The MH240 Series features premium printhead technology, fast processor, and all the memory customers will need to print high-quality labels delivered at the fastest speeds.
Sophisticated TSC Sense Care
The TSC TPH Care Mechanism offers an advanced level of auto-detection ensuring real-time printhead health status, to monitor and prevent down. In addition, the MH241 series supports various media with a pre-printed black mark on top or bottom sides by user's selection in the panel menu.
Dynamic Remote Printer Management
SOTI Connect and TSC Console provide enterprise remote printer management on multiple tasks to reduce maintenance costs and avoid downtime of business-critical devices.
Multi-Connectivity
The MH241 series offers GPIO to support common applicators and emulations along with an optional 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module.
Highly Adaptable to Various Media
MH241 printers can adapt to various media lengths and widths. With accurate printing positioning, the MH241 and MH241T are capable of peeling off minimum of 0.5-inch labels in length. Additionally, the mechanism for fine adjustment to avoid ribbon wrinkles and ensures label print quality.
Brilliant User Experience
The MH241T and MH241P can easily adjust the media near-end sensor to detect the media and remind users to change the media roll on color GUI display (Media near the end). The MH241 series allows users to easily replace printhead and platen roller without the need for specific tools.
-
SKU:
- 1060361396
Manufacturer:
TSC Auto ID Technology Co., Ltd
Manufacturer Part Number:
99-060A047-0301
Manufacturer Website Address:
http://www.tscprinters.com
Brand Name:
TSC Printers
Product Series:
MH240
Product Model:
MH240T
Product Name:
Industrial Thermal Transfer Bar Code Printer
Product Type:
Direct Thermal/Thermal Transfer Printer
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
14 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
83.33 ft
Maximum Print Width:
4.09"
Barcode Symbology Supported:
Code 39,Code 93,Code 128 UCC,Code 128 (A/B/C),Codabar,Interleaved 2 of 5,EAN-8,EAN-13,EAN 128,UPC-A,UPC-E,EAN and UPC 2(5) Digits Add-On,MSI,Plessey,POSTNET,China Post,ITF-14,EAN-14,Code 11,Telepen,PLANET,Code 49,Deutsche Post Identcode,Deutsche Post
Application/Usage:
Industrial,Desktop
Standard Memory:
256 MB
USB Host:
Yes
Serial Port:
Yes
USB:
Yes
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display Screen:
Yes
Display Screen Type:
LCD
Media Type:
Black Mark,Label,Continuous Label,Die-cut Label,Fanfold,Notch,Perforated Label,Tag
Media Sensor:
Gap Sensor,Transmissive Media Sensor,Black Mark Sensor,Reflective Media Sensor,Head Open Sensor,Ribbon Encode Sensor
Media Thickness:
11.02 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.49"
Maximum Label Length:
83.33 ft
Language Emulation:
DPL,EPL,TSPL-EZD,ZPL II,ZPL
Power Source:
AC Supply
Operating Temperature:
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity:
25% - 85%
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Product Color:
Black
Height:
12.8"
Width:
10.9"
Depth:
19.8"
Weight (Approximate):
34.02 lb
Optional Connectivity:
Parallel,Bluetooth,Wireless LAN
Platform Supported:
PC
Certifications & Standards:
FCC Class A, CE Class A, RCM Class A, UL, cUL, T‚Äö√Ñ√∂‚àö√ë≈ì√ÑV/safety, CCC, KC, BIS, ENERGY STAR®
Energy Star:
Yes
Environmentally Friendly:
Yes
sku variation:
The TSC Printers 99-060A047-0301 is also known as TSC-99060A0470301 or 99060A0470301
Brand Logo:
https://content.etilize.com/Brand-Logo/1060361396.jpg
Short Description:
Tsc, Refer To MH241T-A001-0301, Printer MH240T, 4.3" Touch Lcd, USB + RS-232 + Ethernet + USB Host X 2, Dram 256MB/FLASH 512MB, Media Near End, Wi-fi Slot-in Housing, US Industrial
