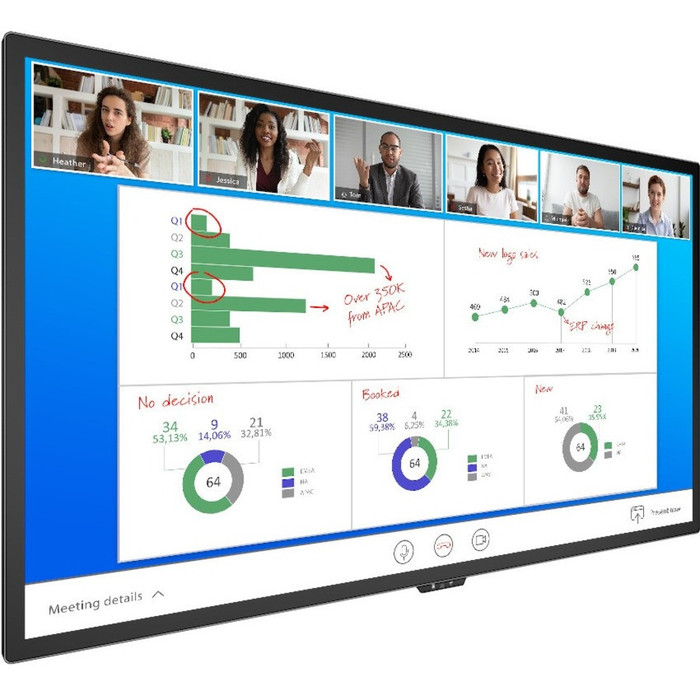

The Planar HB86 is an 86" huddle board display with 4K resolution and pinpoint-accurate, 20-point Projected Capacitive touch, designed for in-room and remote collaboration. It features an embedded Android® operating system with a digital whiteboard and is pre-loaded and collaboration applications. The display also has wireless connectivity and an OPS slot to support external devices such as a Window 10 PC. The display's passive and active stylus pens help ensure efficiency.
The Planar HB86 huddle board is compliant with United States Trade Agreements Act (TAA) regulations
-
SKU:
- 1064474982
Manufacturer:
Leyard
Manufacturer Part Number:
998-2159-00
Manufacturer Website Address:
http://www.planar.com
Brand Name:
Planar
Product Model:
HB86
Product Name:
HB86 4K Touch Screen Collaboration Display
Product Type:
Digital Signage Display
Bezel Width:
0.10"
Processor Manufacturer:
ARM
Processor Type:
Cortex A73
2nd Processor Manufacturer:
ARM
2nd Processor Type:
Cortex A53
Standard Memory:
3 GB
Memory Technology:
DDR4 SDRAM
Number of Screens:
1
Screen Size:
86"
Display Screen Type:
LCD
Multi-touch Screen:
Yes
Touchscreen:
Yes
Display Resolution:
3840 x 2160
Backlight Technology:
Direct View LED
Graphics Controller Manufacturer:
ARM
Graphics Controller Model:
Mali-G51
Brightness:
350 Nit
Color Gamut:
72% NTSC
Ethernet:
Yes
Wireless LAN:
Yes
Bluetooth:
Yes
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Operating System:
Android 8.0
Input Voltage:
120 V AC,230 V AC
VESA Mount Standard:
800 x 600
Weight (Approximate):
139 lb
TAA Compliant:
Yes
sku variation:
The Planar 998-2159-00 is also known as PLA-998215900 or 998215900
Brand Logo:
https://content.etilize.com/Brand-Logo/1064474982.jpg
Short Description:
Planar, HB86, 75IN, 20PT Projected Capacitive Touch, Uhd, LED BACKLIGHT,18X7, Metal Bezel, Landscape Only, Wide Array Of Inputs, Embedded Android 8.0, 350 Nits, Speakers, RS232, Lan, Wifi, Bluetooth.
