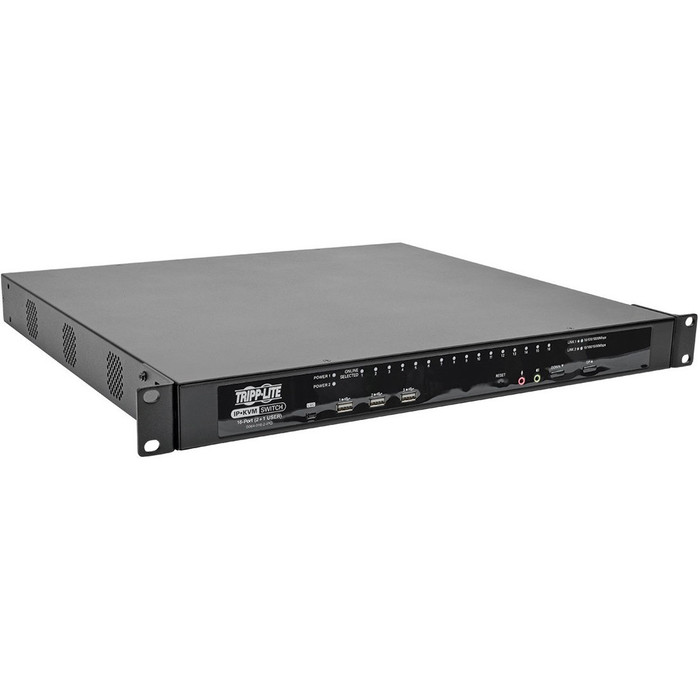

Tripp Lite 16-Port KVM Switch Cat5 Over IP 1 Local 2 Remote User 1U TAA GSA B064-016-02-IPG

Part #: B064-016-02-IPG

Product Highlights

Tripp Lite, Netdirector 16-PORT CAT5 IP KVM Switch 1U Rack-mount 2+1 User

MSRP: $4,512.00
$3,372.72
(You save $1,139.28 )

In stock

Adding to cart… The item has been added
Quantity discount
2 + Contact

Tripp Lite's 16-port NetDirector Cat5 IP KVM Switch is the optimal solution for remotely controlling multiple computers (combination of PS/2, USB and Serial) by up to 3 (1 Local and 2 Remote) independent, simultaneous users. A single unit occupies a mere 1U of rack space, yet can control up to 16 directly connected computers, and a maximum of 256 computers when a second level of B064-016 KVM switches are cascaded. A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows based log server or Syslog server. Accessing the connected computers is a breeze; view multiple computers at the same time using panel array mode, automatically sync USB mice, access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Other features include dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing. 3 year limited warranty.

SKU:
1015804102
Manufacturer:
Tripp Lite by Eaton
Manufacturer Part Number:
B06401602IPG
Manufacturer Website Address:
http://www.tripplite.com
Brand Name:
Tripp Lite
Product Line:
NetDirector
Product Model:
B064-016-02-IPG
Product Name:
NetDirector KVM Switch
Product Type:
KVM Switchbox
KVM Technology:
Digital
Number of Computers Supported:
16
Number of Local Users Supported:
1
Number of Remote Users Supported:
2
Graphic Mode:
UXGA
Maximum Video Resolution:
1600 x 1200
Network (RJ-45):
Yes
PS/2 Port:
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
16
Number of PS/2 Ports:
2
Number of USB Ports:
2
Form Factor:
Rack-mountable
Rack Height:
1U
Height:
1.8"
Width:
17"
Depth:
16"
Weight (Approximate):
17 lb
Package Contents:
  • NetDirector KVM Switch
  • 2 x C5 to 5-15P Power Cords
  • CD (Includes: Owner's Manual, Quick Start Guide, Device Files)
  • Quick Start Guide
  • RJ45 to DB9 Adapter
  • USB/PS/2 Combo Console Cable Kit
  • Grounding
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Limited Warranty:
3 Year
sku variation:
The Tripp Lite B064-016-02-IPG is also known as TRI-B06401602IPG or B06401602IPG
Brand Logo:
https://content.etilize.com/Brand-Logo/1015804102.jpg
Short Description:
Tripp Lite, Netdirector 16-PORT CAT5 IP KVM Switch 1U Rack-mount 2+1 User
Manufacturer-Brochure:
https://content.etilize.com/Manufacturer-Brochure/1015804102.pdf
Accessories:
1014462233,1037699602,10060756,10060888,10060699,1037699603,1011741388,10060647,1011160163,1014462234,1037699604,1017880229,1015804103,10118956
Warranties:
1027961487

The Tripp Lite B064-016-02-IPG is also known as TRI-B06401602IPG or B06401602IPG
