The CM[X]-24-58-2[VAR] range has been designed to provide MiMo dual-band WiFI coverage in an ultra low profile package. The compact, robust low-profile housing contains up to four antenna elements with effective isolation and low correlation covering 2.4-2.5/4.9-6GHz.
- Ultra Low Profile
- Up to 4 x 4 MiMo Dual Band WiFi
- Certified to EN45545-2
- Certified to EN50155
- Meets IP69K and IK10

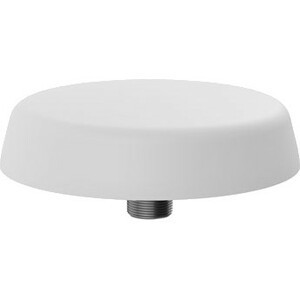

The antenna is designed to be ceiling mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant CS32 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen-free, flame retardant radome the antenna is suitable for many environments.
-
SKU:
- 1059086200
Manufacturer:
Panorama Antennas Ltd
Manufacturer Part Number:
CM2-24-58-2RPSP
Manufacturer Website Address:
http://www.panorama-antennas.com
Brand Name:
Panorama Antennas
Product Name:
Antenna
Product Type:
Antenna
Directivity:
Omni-directional
Operating Frequency Range:
2.4 GHz to 2.5 GHz,4.9 GHz to 6 GHz
Connector Type:
SMA,N-Type
Product Color:
White
Height:
1.18"
Diameter:
4.53"
Form Factor:
Panel,Ceiling Mount
Application/Usage:
Wireless Data Network
sku variation:
The Panorama Antennas CM2-24-58-2RPSP is also known as PAN-CM224582RPSP or CM224582RPSP
Brand Logo:
https://content.etilize.com/Brand-Logo/1059086200.jpg
Short Description:
Panorama, LOW Prof 2X2 2.4/5.0GHZ 2M Rpsp
