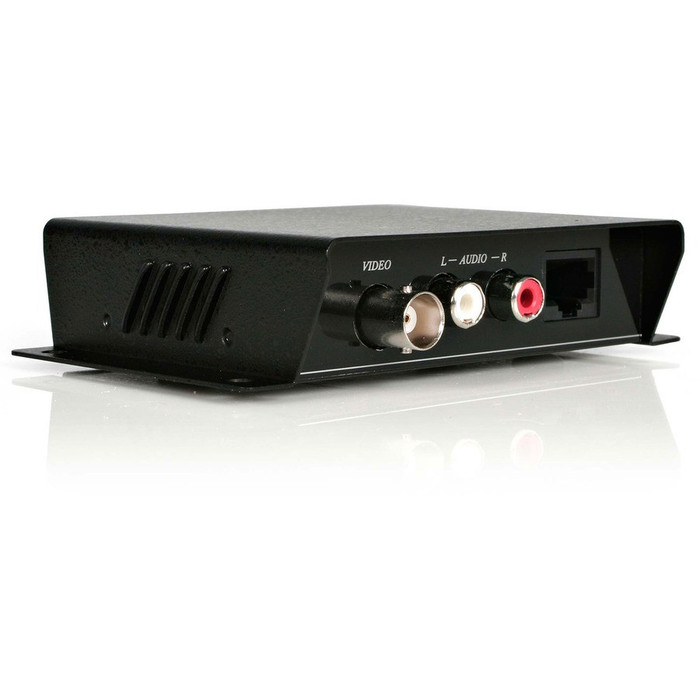

The COMPUTPEXTAComposite Video Extender over Cat 5 with Audio lets you extend a composite video source signal up to 200 meters (650 feet), using standard Cat 5 UTP cabling.

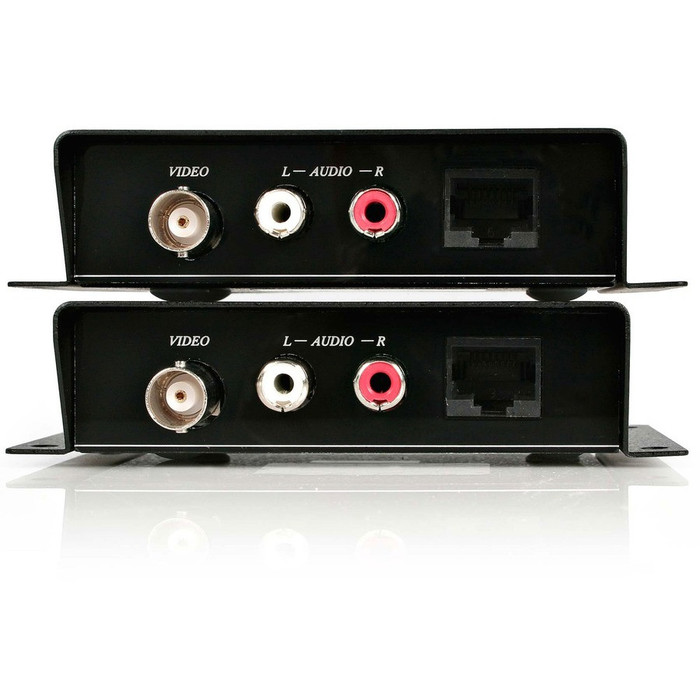

The composite over cat 5 extender is comprised of two extender units that can be used interchangeably - one is installed near the video signal source, the other to be placed near the desired display, up to an impressive 200m away. With no software or power adapter requirements, installation and setup is quick and hassle-free. The included installation/mounting kit, and BNC to RCA composite video adapters offer added flexibility in the placement and usage of the device.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
-
SKU:
- 1010124347
Manufacturer:
StarTech.com
Manufacturer Part Number:
COMPUTPEXTA
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
Composite Video Extender over Cat 5 with Audio
Product Type:
Video Extender Transmitter/Receiver
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
656.17 ft
Maximum Video Resolution:
640 x 480
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Product Color:
Black
Transmitter Height:
0.90"
Transmitter Width:
3"
Transmitter Depth:
4.30"
Receiver Height:
0.90"
Receiver Width:
3"
Receiver Depth:
4.30"
Form Factor:
Rack-mountable
Transmitter Weight (Approximate):
11.82 oz
Package Contents:
- 1 x Transmitter
- 1 x Receiver
- 1 x Mounting Kit
- 2 x BNC to RCA Adapter
- 1 x Instruction Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,REACH,WEEE
Country of Origin:
Taiwan
TAA Compliant:
Yes
Limited Warranty:
2 Year
sku variation:
The StarTech.com COMPUTPEXTA is also known as STA-COMPUTPEXTA or COMPUTPEXTA
Brand Logo:
https://content.etilize.com/Brand-Logo/1010124347.jpg
Short Description:
Startech, Composite Video Extender Over CAT 5 With Audio - Composite Video Extender - Composite Over CAT5
Additional-pdf1:
https://content.etilize.com/Additional-pdf1/1010124347.pdf
Additional-pdf2:
https://content.etilize.com/Additional-pdf2/1010124347.pdf
