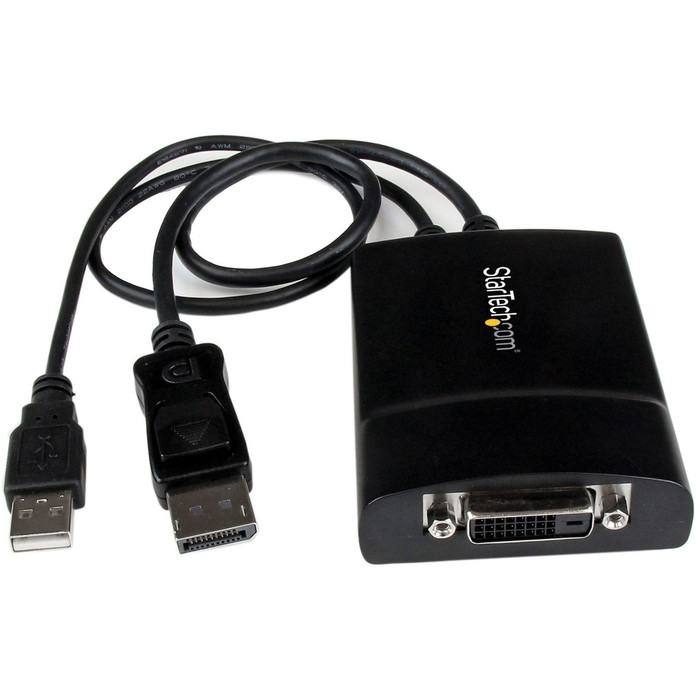

The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Back by StarTech.com 3-year warranty, with free lifetime technical support.
More from the Manufacturer
-
SKU:
- 1023613529
Manufacturer:
StarTech.com
Manufacturer Part Number:
DP2DVID2
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
DisplayPort to DVI Adapter
Packaged Quantity:
1
Product Type:
Video Adapter
Connector Type on First End:

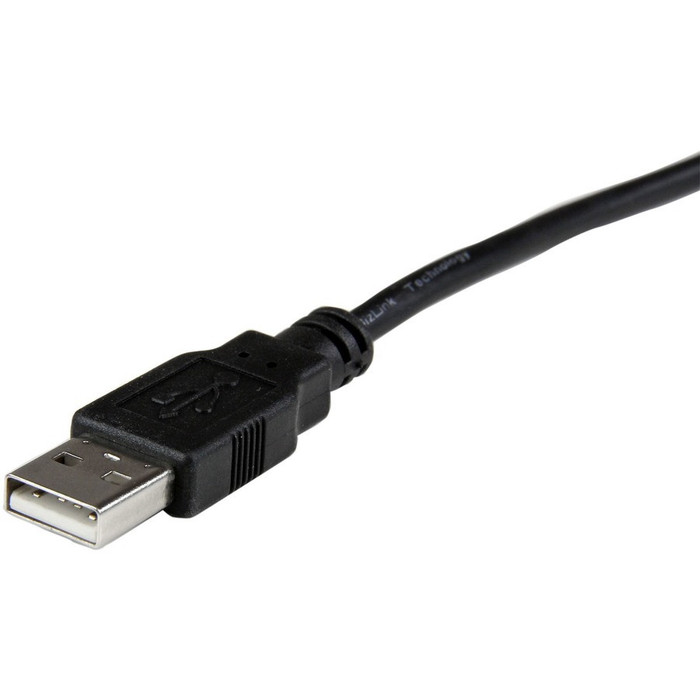

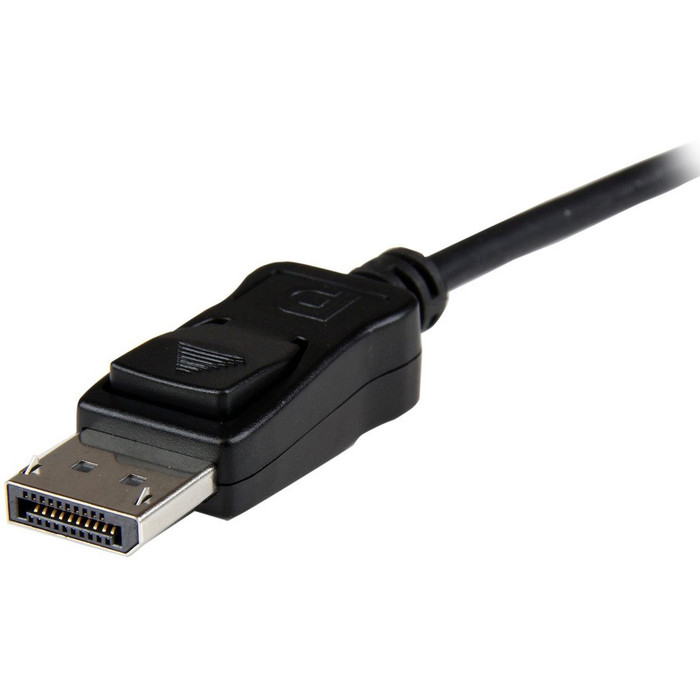

DisplayPort Digital Audio/Video - Male,USB Type A - Male
Connector on First End Details:
1 x 20-pin DisplayPort Digital Audio/Video - Male,1 x 4-pin USB Type A - Male
Connector Type on Second End:
DVI-D (Dual-Link) Digital Video - Female
Connector on Second End Details:
1 x 19-pin DVI-D (Dual-Link) Digital Video - Female
Connector Plating:
Nickel
Contact Plating:
Gold
Features:
Active,HDCP,Extended Display Identification Data (EDID),Screw Lock
Product Color:
Black
Height:
0.9"
Width:
2.5"
Weight (Approximate):
5.60 oz
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE,REACH
Country of Origin:
China
Limited Warranty:
3 Year
sku variation:
The StarTech.com DP2DVID2 is also known as STA-DP2DVID2 or DP2DVID2
Brand Logo:
https://content.etilize.com/Brand-Logo/1023613529.jpg
Short Description:
Startech, Displayport To DVI Dual Link Active Adapter Converter - DP To Dual Link Dvi-d Active Adapter - 2560X1600
Additional-pdf1:
https://content.etilize.com/Additional-pdf1/1023613529.pdf
Additional-pdf2:
https://content.etilize.com/Additional-pdf2/1023613529.pdf
