The DP2DVIMM6BS 6ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a DVI monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older DVI monitor or projector.
For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.
The DP2DVIMM6BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
More from the Manufacturer
-
SKU:
- 1026703433
Manufacturer:
StarTech.com
Manufacturer Part Number:
DP2DVIMM6BS
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
Active DisplayPort to DVI Adapter
Packaged Quantity:
1
Product Type:
Video Cable Adapter
Cable Type:
DisplayPort/DVI-D
Cable Length:
6 ft

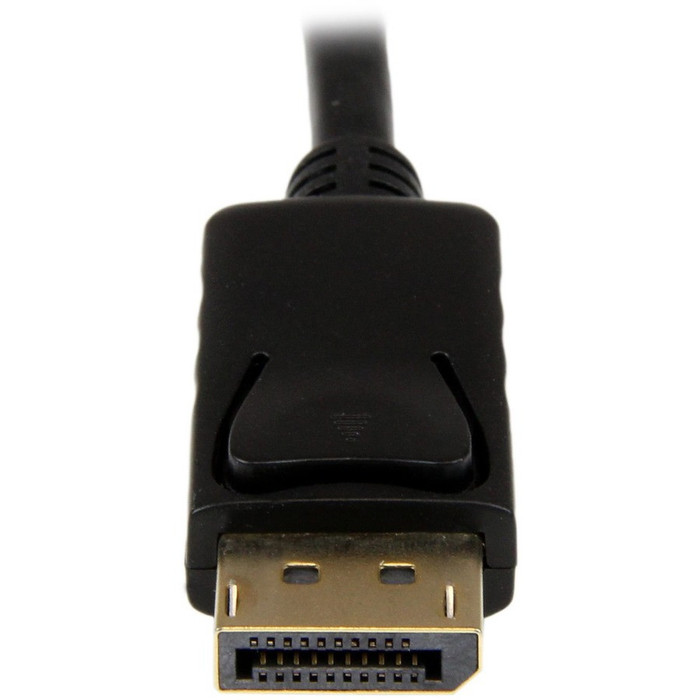

Connector Type on First End:
DisplayPort 1.2 Digital Audio/Video - Male
Connector Gender on First End:
Male
Connector on First End Details:
1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male

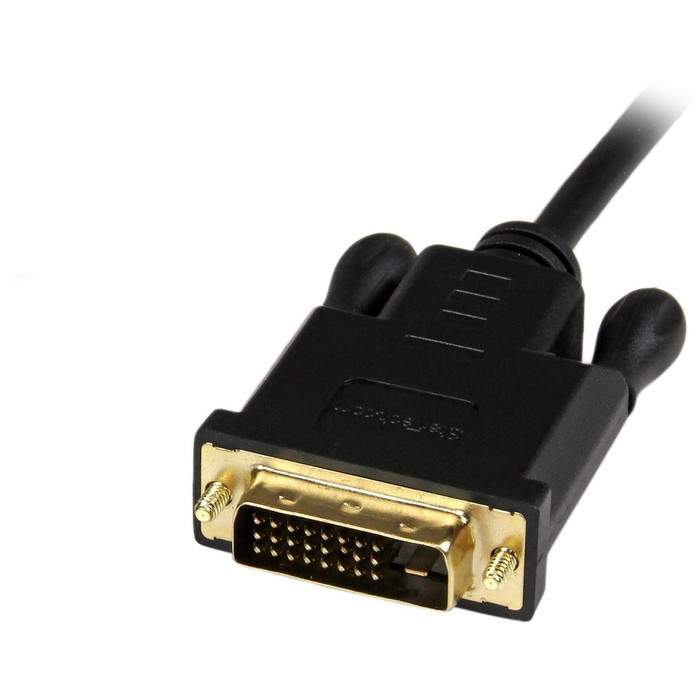

Connector Type on Second End:
DVI-D (Single-Link) Digital Video - Male
Connector Gender on Second End:
Male
Connector on Second End Details:
1 x 25-pin DVI-D (Single-Link) Digital Video - Male
Device Supported:
Video Device,TV,Notebook,Monitor,Projector,Graphics Card,HDTV,Desktop Computer,Docking Station,Workstation
Supported Resolution:
1920 x 1200
Features:
Active,Extended Display Identification Data (EDID),Latching Connector,Screw Lock,Multi-mode DisplayPort,Flexible
Product Color:
Black
Weight (Approximate):
0.23 lb
Environmentally Friendly:
Yes
Environmental Certification:
REACH,WEEE,RoHS
Country of Origin:
China
Limited Warranty:
3 Year
sku variation:
The StarTech.com DP2DVIMM6BS is also known as STA-DP2DVIMM6BS or DP2DVIMM6BS
Brand Logo:
https://content.etilize.com/Brand-Logo/1026703433.jpg
Short Description:
Startech, 6 FT Displayport To DVI Active Adapter Converter CABLE-6FT (1.8M) Active DP To DVI M/M Cable For PC - 2560X1600-BLACK
Additional-pdf1:
https://content.etilize.com/Additional-pdf1/1026703433.pdf
