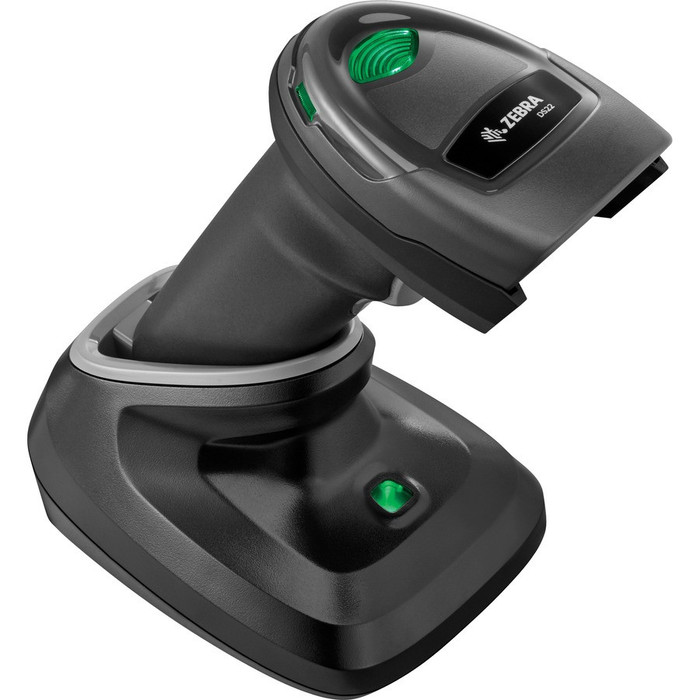

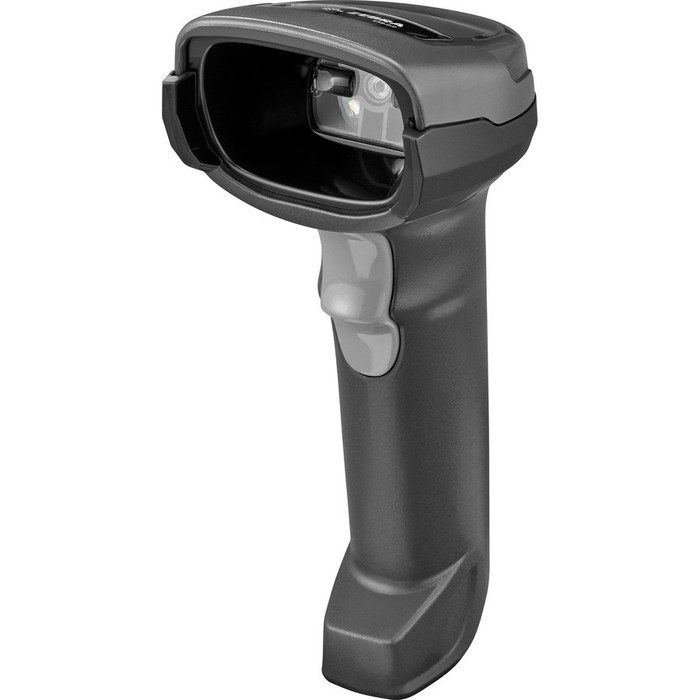

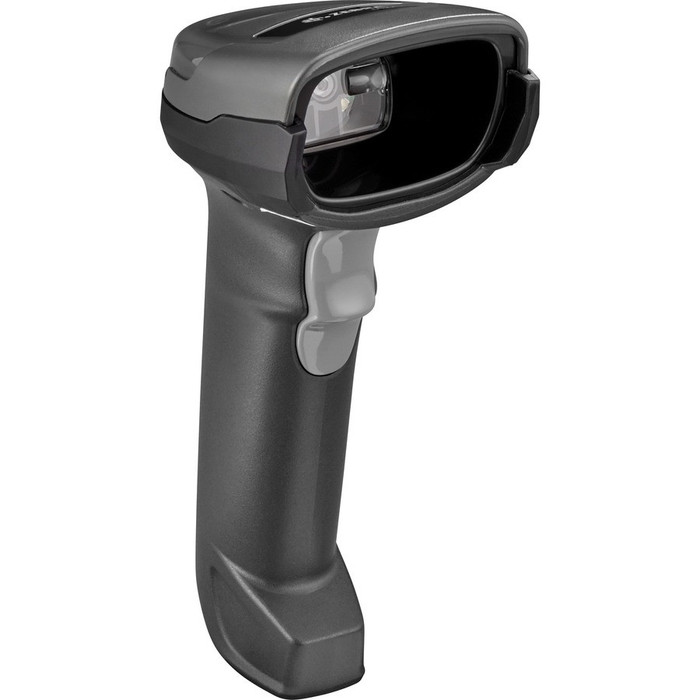

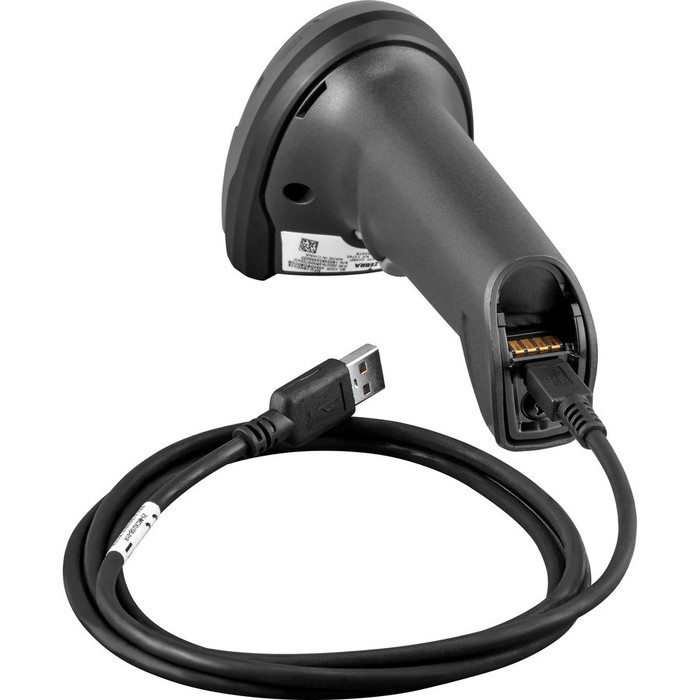

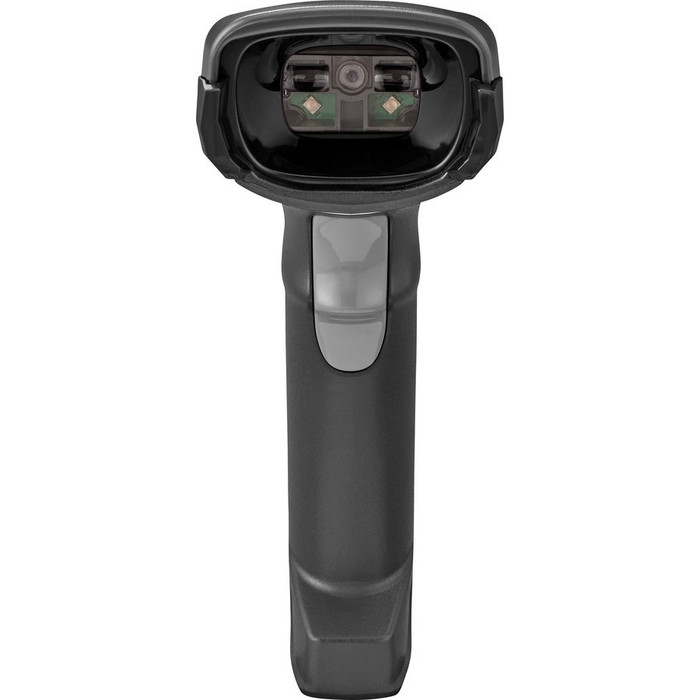

Zebra DS2278-SR Mobile Barcode Scanner DS2278-SR7U2100PRW

Part #: DS2278-SR7U2100PRW

Product Highlights

Zebra DS2278, 2D Imager, Standard Range Cordless Scanner, USB KIT With Presenation Cradle, Includes DS2278-SR00007ZZWW, CBA-U21-S07ZBR, CR2278-PC10004WW, Black

MSRP: $694.89
$645.70
(You save $49.19 )

In stock

Adding to cart… The item has been added
Quantity discount
2 + Contact

Affordability and simplicity delivered

2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards. Your 1D scanner can't capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store. But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn't compromise performance or features for price. Your workers get best-in-class first-time, everytime scanning with point-and-shoot simplicity. You get an imager that couldn't be easier to deploy and manage. And you can choose the model that best fits your POS needs - the corded DS2208 or the cordless DS2278. The DS2200 Series - the affordability your budget demands, with the deployment, ease-of-use and management simplicity your business requires.

Easy to Deploy

Pre-Configured and Ready to Use, Right Out of the Box
Since the default settings are optimized for the majority of scanning applications, you can use the DS2200 Series imager the moment you take it out of the box - no configuration required..

Auto-Host Detect Cables
Just plug the DS2200 Series into your Point of Sale (POS) and the auto-host detect cables will automatically identify the interface and connect the imager, simplifying and reducing setup time.

Easy Integration with a Tablet-Based POS
The DS2200 Series offers all the features you need to add high-quality scanning to your tablet-based POS. The Micro USB cable provides a low-cost charging alternative to a cradle. And with our simplified app development tools, you can easily configure and update the DS2200 Series right from the tablet.

Deploy Anywhere in the World
With over 90 international keyboards, the DS2200 Series is easy to deploy all around the world.

Easily Customize Settings with 123Scan
This complementary software tool is so intuitive that even a first time user can easily set up a DS2200 Series imager. The wizard-driven interface makes it easy to embed all settings into a single programming barcode, enabling you to configure your devices with a single scan.

Backwards Compatible with Zebra LS2208 Series Cables
If you use Zebra's 1D LS2208 scanners today, you can use the same universal cables with the DS2200 Series, allowing you to leverage your existing accessory investment to minimize the cost of upgrading to a 1D/2D imager.

SKU:
1041310864
Manufacturer:
Zebra Technologies Corporation
Manufacturer Part Number:
DS2278-SR7U2100PRW
Manufacturer Website Address:
http://www.zebra.com
Brand Name:
Zebra
Product Series:
DS2200
Product Model:
DS2278-SR
Product Name:
DS2278-SR Mobile Barcode Scanner
Product Type:
Barcode Scanner Kit
Connectivity Technology:
Wireless
Scanning Capability:
1D,2D
Barcode Symbology Supported:

1D:

  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)
Image Sensor Type:
Imager
Scan Pattern:
Linear
Scanner Range:
Standard Range
Scanning Distance:
14.49"
Cable Type Included:
USB
Field of View (Horizontal):
33°
Field of View (Vertical):
25°
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
5 in/s
Maximum Ambient Light:
107600 lux
Drop Specification:
Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
6.7 mil
Bluetooth:
Yes
Host Interface:
USB
Form Factor:
Mobile
Product Color:
Twilight Black
Height:
6.9"
Width:
2.6"
Depth:
3.9"
Weight (Approximate):
7.50 lb
Ingress Protection (IP) Rating:
IP42
Application/Usage:
Retail,Hospitality,Transportation,Logistics,Light/Clean Manufacturing,Government
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Limited Warranty:
3 Year
sku variation:
The Zebra DS2278-SR7U2100PRW is also known as ZEB-DS2278SR7U2100PRW or DS2278SR7U2100PRW
Brand Logo:
https://content.etilize.com/Brand-Logo/1041310864.jpg
Short Description:
Zebra DS2278, 2D Imager, Standard Range Cordless Scanner, USB KIT With Presenation Cradle, Includes DS2278-SR00007ZZWW, CBA-U21-S07ZBR, CR2278-PC10004WW, Black
Manufacturer-Brochure:
https://content.etilize.com/Manufacturer-Brochure/1041310864.pdf
User-Manual:
https://content.etilize.com/User-Manual/1041310864.pdf
Additional-pdf1:
https://content.etilize.com/Additional-pdf1/1041310864.pdf
Additional-pdf2:
https://content.etilize.com/Additional-pdf2/1041310864.pdf

The Zebra DS2278-SR7U2100PRW is also known as ZEB-DS2278SR7U2100PRW or DS2278SR7U2100PRW
