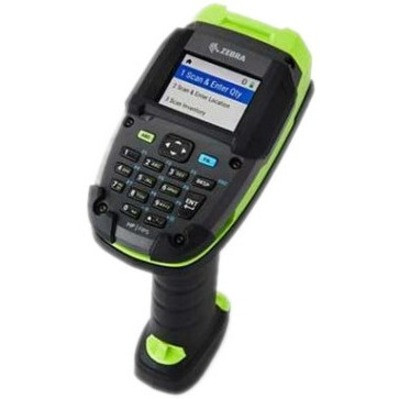

Zebra DS3600-KD Cordless Barcode Scanner Kit DS3678-HP3U4212SKW

Part #: DS3678-HP3U4212SKW

Product Highlights

Zebra DS3678, Keypad AND Display, High Performance 1D/2D Imager, Cordless, Fips, USB KIT Includes Scanner, 7 Foot USB Cable, Cradle, Power, AND Line Cord, Vibration Motor, Industrial Green

MSRP: $1,691.95
$1,411.44
(You save $280.51 )

In stock

Adding to cart… The item has been added
Quantity discount
2 + Contact
Unstoppable performance with the versatility of a keypad and color display

Warehouses, retailers and manufacturers face unrelenting pressure to deliver more - and to do it faster and more accurately. Rise to meet the challenge with the DS3600-KD Ultra-Rugged Scanner with Keypad and Color Display. Built for your toughest environments, the DS3600-KD is virtually indestructible, including an enhanced 10 ft./3 m drop spec to concrete. The scanner reads barcodes in any condition, whether they're in hand or as far as 7 ft./2.1 m away. Workers can key in data, such as adding quantity and location, with the ergonomic keypad and color display. Pre-built applications offer the same 'point and shoot' simplicity of a scanner and enable workers to complete picking, putaway and inventory tasks with amazing efficiency and accuracy. And DataCapture DNA, Zebra's exclusive software ecosystem, takes scanner performance far beyond the basics - simplifying every stage of the scanning experience over the life of your device.

Scan it all - at astonishing speeds

Workers can capture virtually any 1D or 2D barcode as fast as they can pull the trigger, from as far as 7 ft./2.1 m away. Powered by Zebra's exclusive PRZM Intelligent Imaging technology and the highest sensor resolution in its class, the DS3600-KD instantly captures the most problematic barcodes - including barcodes that are dirty, damaged, poorly printed and under shrinkwrap.

Tackle more tasks with groundbreaking versatility

Make picking, inventory and point of sale tasks more efficient with the keypad and color display. The ergonomic backlit keypad is well designed for one-handed operation. The color display provides a more intuitive, modern experience and the display brightness automatically adjusts for easy viewing in any lighting condition.

Pre-built applications ready to use right out of the box

The DS3600-KD takes the complexity out of app development and integration. Start using our pre-built applications on day one - including the ability to add quantity and/or location data to any scanned barcode, confirm that the contents inside a container match the outer label, and even add location data during inventory counts while roaming away from the host. There's virtually no learning curve for workers - if they can use a scanner, they can use the pre-built applications. And the ability for future customization can meet specific application needs

Performs in your toughest environments

Ultra-rugged - the most indestructible design in its class

Zebra ultra-rugged scanners earned their name for a reason - you won't find a tougher family of scanners. The DS3600-KD has the highest drop, tumble and sealing specifications in its class. It can survive 10 ft./3 m drops to concrete and 7,500 tumbles.

SKU:
1069622016
Manufacturer:
Zebra Technologies Corporation
Manufacturer Part Number:
DS3678-HP3U4212SKW
Manufacturer Website Address:
http://www.zebra.com
Brand Name:
Zebra
Product Model:
DS3600-KD
Product Name:
DS3600-KD Cordless Barcode Scanner Kit
Product Type:
Barcode Scanner Kit
Connectivity Technology:
Wireless
Scanning Capability:
1D,2D
Barcode Symbology Supported:
1D :
  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)
Light Source:
LED
Image Sensor Type:
Imager
Scanner Range:
Short Range
Scanning Distance:
80"
Display Screen:
Yes
Number of Keys:
19
Keypad Type:
Alphanumeric
Cable Type Included:
USB
Stand Included:
Yes
Field of View (Horizontal):
31°
Field of View (Vertical):
23°
Reading Angle (Skew):
60°
Reading Angle (Pitch):
60°
Reading Angle (Roll):
360°
Maximum Ambient Light:
108000 lux
Drop Specification:
Withstands multiple 10.0 ft./3.0 m drops to concrete at room temperature
Withstands multiple 8.0 ft./2.4 m drops to concrete at -4° F to 122° F/-20° C to 50° C
Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
7.5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Bluetooth:
Yes
Radio Frequency:
Yes
Host Interface:
USB,Serial,Keyboard Wedge,Ethernet,PROFINET
Power Supply Included:
Yes
Form Factor:
Mobile
Rugged:
Yes
Product Color:
Industrial Green
Height:
7.5"
Width:
3.1"
Depth:
5.6"
Weight (Approximate):
1.12 lb
Ingress Protection (IP) Rating:
IP65,IP68
Application/Usage:
Warehouse,Distribution,Retail,Manufacturing,Asset Tracking,Inventory,Picking,Packing
Environmentally Friendly:
Yes
sku variation:
The Zebra DS3678-HP3U4212SKW is also known as ZEB-DS3678HP3U4212SKW or DS3678HP3U4212SKW
Brand Logo:
https://content.etilize.com/Brand-Logo/1069622016.jpg
Short Description:
Zebra DS3678, Keypad AND Display, High Performance 1D/2D Imager, Cordless, Fips, USB KIT Includes Scanner, 7 Foot USB Cable, Cradle, Power, AND Line Cord, Vibration Motor, Industrial Green
Manufacturer-Brochure:
https://content.etilize.com/Manufacturer-Brochure/1069622016.pdf

The Zebra DS3678-HP3U4212SKW is also known as ZEB-DS3678HP3U4212SKW or DS3678HP3U4212SKW
