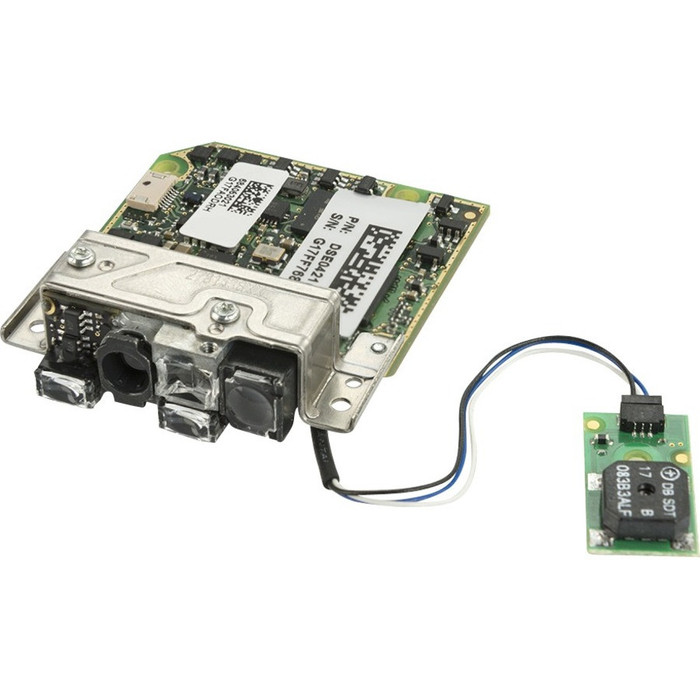

THE MINIATURE 2D DECODED SCAN MODULE
The DSE04X1 are the decoded versions of the DE2011-DL ultra-compact high performance 2D imager engine. It is comprised of the DE2011-DL and a decoder board. The scan engines feature an exceptional high-speed sensor which enables image capture at a full 60 frames per second, delivering outstanding motion tolerance.
The scan engines feature an outstanding depth-of-field, a large field-of-view, high motion tolerance, snappy reading, and excellent decoding performance on poorly printed codes or bar codes displayed on mobile devices and computer screens.
Customers can also choose to add a beeper and/or Datalogic's patented 'Green Spot' technology for good-read feedback. This is particularly useful in noisy environments.
EASY INTEGRATION
The DSE04X1 scan modules include Datalogic's high-performance decoder which can decode all common 1D and 2D bar codes.
Customers can choose an integrated scan module or install the scan engine and decoder board separately, connected by a short flex cable up to 7.0 cm / 2.7 in. This provides mounting flexibility for constrained spaces.
The scan module supports USB interfaces (USB keyboard, USB HID and USB com) or UART interfaces (RS-232, TTL-232).
Customers who need to connect to a host Computer port can choose either a model with the microUSB connector board (DSE0421-K) or the RS-232/RJ connector board (DSE0451-S).
With Datalogic remote management software, customers can manage the firmware of the scan module remotely.
The DSE04X1 are the decoded versions of the DE2011-DL ultra-compact high performance 2D imager engine. It is comprised of the DE2011-DL and a decoder board. The scan engines feature an exceptional high-speed sensor which enables image capture at a full 60 frames per second, delivering outstanding motion tolerance.
The scan engines feature an outstanding depth-of-field, a large field-of-view, high motion tolerance, snappy reading, and excellent decoding performance on poorly printed codes or bar codes displayed on mobile devices and computer screens.
Customers can also choose to add a beeper and/or Datalogic's patented 'Green Spot' technology for good-read feedback. This is particularly useful in noisy environments.
EASY INTEGRATION
The DSE04X1 scan modules include Datalogic's high-performance decoder which can decode all common 1D and 2D bar codes.
Customers can choose an integrated scan module or install the scan engine and decoder board separately, connected by a short flex cable up to 7.0 cm / 2.7 in. This provides mounting flexibility for constrained spaces.
The scan module supports USB interfaces (USB keyboard, USB HID and USB com) or UART interfaces (RS-232, TTL-232).
Customers who need to connect to a host Computer port can choose either a model with the microUSB connector board (DSE0421-K) or the RS-232/RJ connector board (DSE0451-S).
With Datalogic remote management software, customers can manage the firmware of the scan module remotely.
- SKU:
- 1071989726
Autodiscriminates all standard 1D codes including GS1 DataBar&trade linear codes
2D CODES:
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Mi
