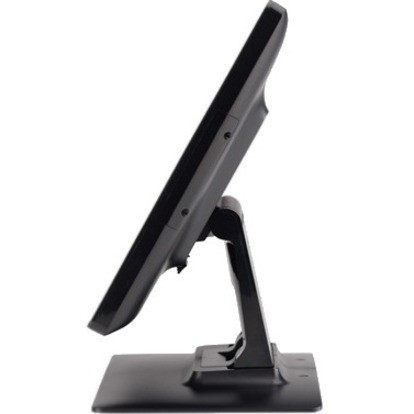

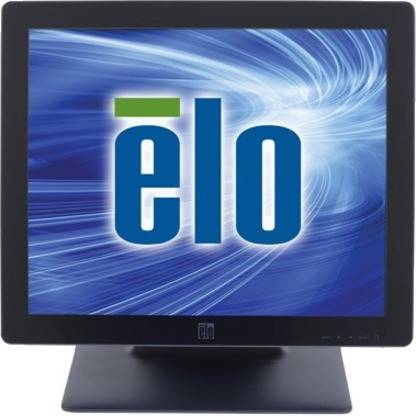

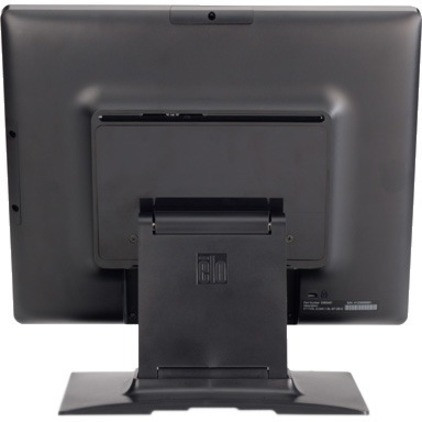

The Elo Touch Solutions 1723L 17-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket.
The edge to edge flat glass style of the 1723L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.
Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.
The 1723L has been "designed for touch" from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.
-
SKU:
- 1031018380
Manufacturer:
Elo Touch Solutions, Inc
Manufacturer Part Number:
E016808
Manufacturer Website Address:
http://www.elotouch.com
Brand Name:
Elo
Product Model:
1723L
Product Name:
1723L Multifunction 17-inch Desktop Touchmonitor
Product Type:
LCD Touchscreen Monitor
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Response Time:
30 ms
Aspect Ratio:
5:4
Mount Type:
Wall Mountable
Backlight Technology:
LED
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Contrast Ratio:
800:1
Brightness:
250 Nit
Speakers:
Yes
Touchscreen Type:
IntelliTouch Pro Projected Capacitive
Multi-touch Screen:
Yes
DVI:
Yes
USB:
Yes
VGA:
Yes
Operating Power Consumption:
22 W
Product Color:
White
VESA Mount Compatible:
Yes
Height with Stand:
8.24"
Width with Stand:
15.42"
Depth with Stand:
14.20"
Weight (Approximate):
7.86 lb
Weight with Stand (Approximate):
25.35 lb
Package Contents:
- 1723L Multifunction 17-inch Desktop Touchmonitor
- Touch/Video/Accessory Cables
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,China RoHS,WEEE
Limited Warranty:
3 Year
sku variation:
The Elo E016808 is also known as ELO-E016808 or E016808
Brand Logo:
https://content.etilize.com/Brand-Logo/1031018380.jpg
Short Description:
Elo, Mto, Ncnr, 1723L 17-INCH LCD (led Backlight) Desktop, Projected Capacitive 10-TOUCH, USB Controller, Anti-glare, Zero-bezel, VGA & DVI Video Interface, White, Worldwide
Manufacturer-Brochure:
https://content.etilize.com/Manufacturer-Brochure/1031018380.pdf
User-Manual:
https://content.etilize.com/User-Manual/1031018380.pdf
Accessories:
1026137892
