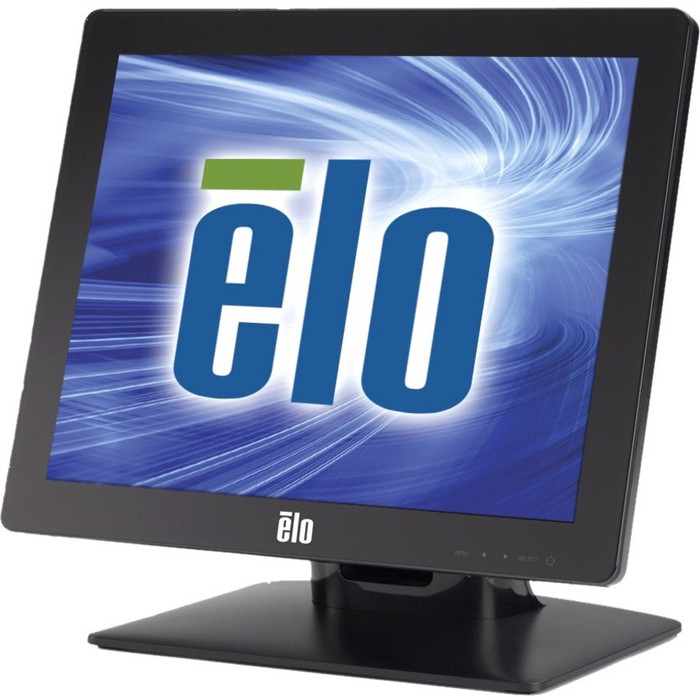

The 1517L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, "built for touch" industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1517L features two leading zero-bezel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; iTouch pure-glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.
-
SKU:
- 1026815110
Manufacturer:
Elo Touch Solutions, Inc
Manufacturer Part Number:
E344758
Manufacturer Website Address:
http://www.elotouch.com
Brand Name:
Elo
Product Model:
1517L
Product Name:
1517L Rev A Multifunction 15-inch Desktop Touchmonitor
Product Type:
LCD Touchscreen Monitor
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA-2
Response Time:
25 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
140°
Mount Type:
Desk Mountable
Backlight Technology:
LED
Features:
Security Lock
Maximum Resolution:
1024 x 768
Color Supported:
16.2 Million Colors
Contrast Ratio:
700:1
Brightness:
250 Nit
Touchscreen Type:
IntelliTouch Surface Wave
USB:
Yes
VGA:
Yes
Operating Power Consumption:
10 W
Product Color:
Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Height:
19"
Width:
9.1"
Height with Stand:
12.50"
Width with Stand:
14.10"
Depth with Stand:
6.80"
Weight (Approximate):
15.60 lb
Weight with Stand (Approximate):
9 lb
Package Contents:
- 1517L Rev A Multifunction 15-inch Desktop Touchmonitor
- Power Cable
- Touch/Video Cables
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE,China RoHS
Limited Warranty:
3 Year
sku variation:
The Elo E344758 is also known as ELO-E344758 or E344758
Brand Logo:
https://content.etilize.com/Brand-Logo/1026815110.jpg
Short Description:
Elo, 1517L 15-INCH LCD (led Backlight) Desktop, Intellitouch (saw) Single-touch, USB & RS232 Controller, Anti-glare, Bezel, VGA Video Interface, Black, Worldwide
Manufacturer-Brochure:
https://content.etilize.com/Manufacturer-Brochure/1026815110.pdf
Accessories:
1025886866,1023093544,1025886867,1020544640,1025828459
