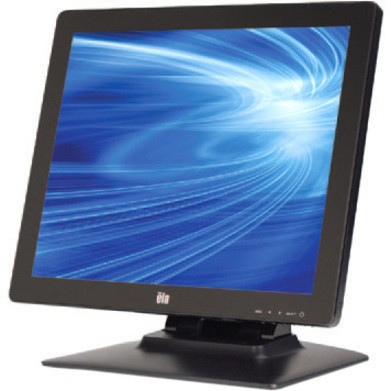

The Elo Touch Solutions 1723L 17-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.
-
SKU:
- 1024732507
Manufacturer:
Elo Touch Solutions, Inc
Manufacturer Part Number:
E785229
Manufacturer Website Address:
http://www.elotouch.com
Brand Name:
Elo
Product Model:
1723L
Product Name:
1723L Multifunction 17-Inch Desktop Touchmonitor
Product Type:
LCD Touchscreen Monitor
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Response Time:
30 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Mount Type:
Desk Mountable,Wall Mountable
Features:
Security Lock,Cable Management,Water Proof
Horizontal Frequency:
80 kHz
Adjustable Stand Height:
Yes
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Contrast Ratio:
800:1
Brightness:
250 Nit
Speakers:
Yes
Touchscreen Type:
Surface Acoustic Wave
Multi-touch Screen:
Yes
DVI:
Yes
USB:
Yes
VGA:
Yes
Built-in Devices:
USB Hub
Operating Power Consumption:
22 W
Product Color:
Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Height:
9"
Height with Stand:
8.23"
Width with Stand:
15.39"
Depth with Stand:
14.17"
Weight (Approximate):
7.85 lb
Weight with Stand (Approximate):
11.49 lb
Package Contents:
- 1723L Multifunction 17-Inch Desktop Touchmonitor
- Touch Cable
- Video Cable
Environmentally Friendly:
Yes
Environmental Certification:
WEEE,RoHS,China RoHS
Limited Warranty:
3 Year
sku variation:
The Elo E785229 is also known as ELO-E785229 or E785229
Brand Logo:
https://content.etilize.com/Brand-Logo/1024732507.jpg
Short Description:
Elo, 1723L 17-INCH LCD (led Backlight) Desktop, Intellitouch (saw) Dual-touch, USB Controller, Anti-glare, Zero-bezel, VGA & DVI Video Interface, Black, Worldwide
Manufacturer-Brochure:
https://content.etilize.com/Manufacturer-Brochure/1024732507.pdf
Accessories:
1024840183,1020544640,1024732479
