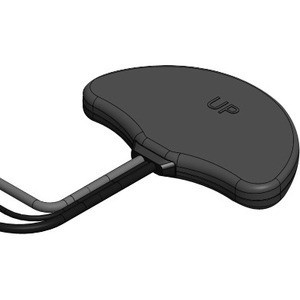

The GPSCO(F)-7-27-24-58 range of telematics antennas offer a "3-in-1" product for vehicle communications and telematics. The housing incorporates antennas for cellular/LTE, dual band WiFi and GPS/GLONASS/BEIDOU with a 26dB gain LNA.
Meeting the requirements for UNECE regulation R 118, the antenna is suitable for use in M3 category vehicles (transportation). The antenna housing is UV resistant and flame retardant and the 3m length integrated coax cables are flame retardant, low smoke specification.
The antenna offers easy and quick installation on/under the dashboard or on the windshield using the supplied acrylic adhesive pad. Please note that performance may change depending on mounting position/surface.
-
SKU:
- 1033967892
Manufacturer:
Panorama Antennas Ltd
Manufacturer Part Number:
GPSCO-7-27-24-58
Manufacturer Website Address:
http://www.panorama-antennas.com
Brand Name:
Panorama Antennas
Product Name:
Cellular, WIFi & GPS/GNSS Telematics Antenna
Product Type:
Antenna
Directivity:
Omni-directional
Operating Frequency Range:
698 MHz to 960 MHz,1562 MHz to 1612 MHz,1710 MHz to 2700 MHz,2400 MHz,4900 MHz to 6000 MHz
Antenna Gain (Isotropic):
7 dBi
Connector Type:
SMA
Product Color:
Black
Height:
0.60"
Width:
5.16"
Depth:
3.33"
Application/Usage:
Cellular Network,Wireless Data Network,GPS,Vehicle
Package Contents:
- Cellular, WIFi & GPS/GNSS Telematics Antenna
- Acrylic Adhesive Pad
sku variation:
The Panorama Antennas GPSCO-7-27-24-58 is also known as PAN-GPSCO7272458 or GPSCO7272458
Brand Logo:
https://content.etilize.com/Brand-Logo/1033967892.jpg
Short Description:
Panorama Antenna, Siso Dash Mount, "3 In 1", Adhesive Mount Antenna "duck Foot Style", 698 - 2700MHZ + GPS + Wi-fi, 2.4 & 5.0GHZ, 3M / 10' SMA (M) Terminations. Wi-fi: SMA (M) REV POL
