- Low Profile 4x4 4G/5G MiMo
- Up to 6x6 MiMo Dual Band WiFi
- Optional GPS/GNSS Active Antenna 26dB LNA
The L[G]M[X]M4[X]-6-60[-24-58] range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6x6 MiMo WiFi 2.4/5.0GHz or 4x4 WiFi 6E 2.4/4.9-7.2GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.
The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.

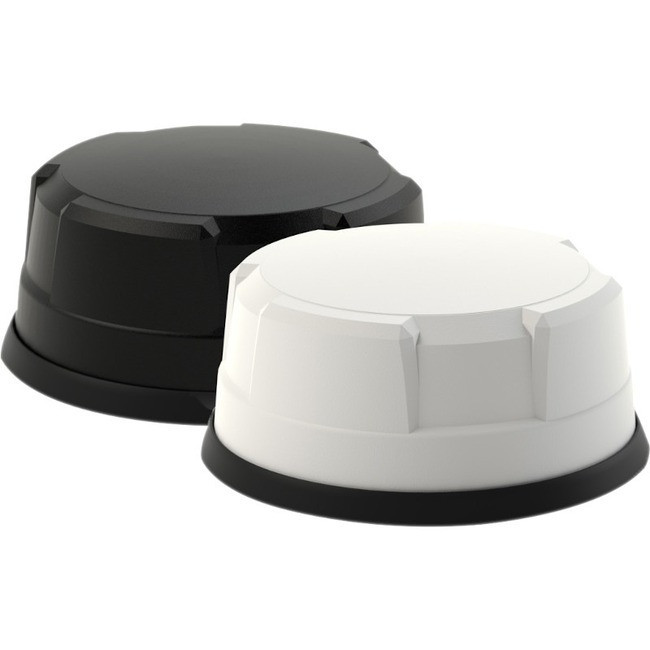

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.
-
SKU:
- 1067624461
Manufacturer:
Panorama Antennas Ltd
Manufacturer Part Number:
LGMDM4B6602458
Manufacturer Website Address:
http://www.panorama-antennas.com
Brand Name:
Panorama Antennas
Product Line:
MAKO
Product Series:
LGM
Product Name:
MAKO LGM Antenna
Product Type:
Antenna
Operating Frequency Range:
617 MHz to 960 MHz,1710 MHz to 3800 MHz,4900 MHz to 960 MHz,4.9 GHz to 7.2 GHz,1562 MHz to 1612 MHz
Antenna Gain:
26 dB
Connector Type:
SMA,FME
Product Color:
Black
Height:
3.15"
Diameter:
7.09"
Form Factor:
Panel Mount
Application/Usage:
Wireless Data Network,Cellular Network,GPS
sku variation:
The Panorama Antennas LGMDM4B-6-60-24-58 is also known as PAN-LGMDM4B6602458 or LGMDM4B6602458
Brand Logo:
https://content.etilize.com/Brand-Logo/1067624461.jpg
Short Description:
Panorama Antennas, 4G/5G 4X4 Mimo 2X2 Mimo Wifi Gps/gnss -blk
