Description

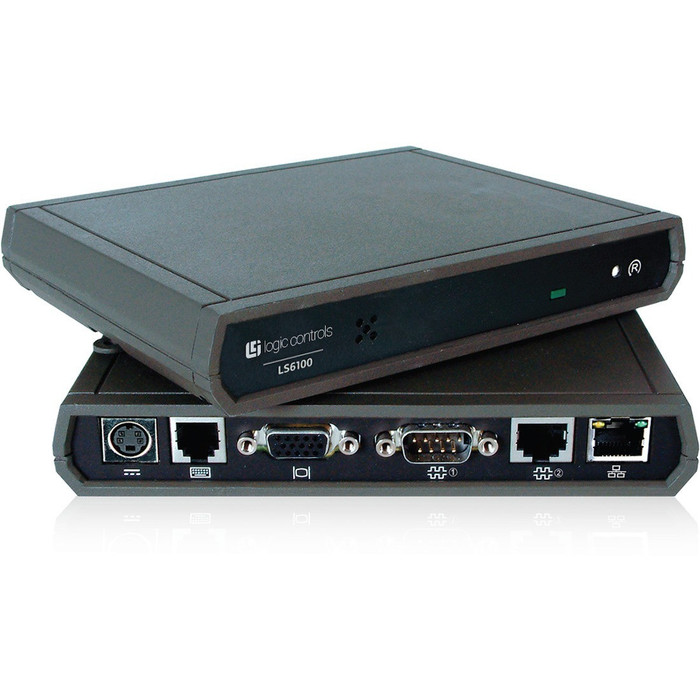

The LS6100 is an enhanced version of the time-proven compact LS6000, Logic Controls kitchen display controller with improvement in speed of operation and network connectivity. The LS6100 kitchen display controller continues is the most cost-effective and reliable kitchen display system hardware on the market with a heavy-duty die-cast case, snap-to-lock connectors, low power, no moving mechanical parts, and no internal cables. The kitchen display controller is designed and manufactured for reliable uninterrupted operations in harsh kitchen environments.
Main Features:
The LS6100 kitchen video controller is the Ethernet version of Logic Net, the industry's leading kitchen video display system solution. It has succeeded in the advantages of Logic Net and yet facilitates network implementation with the most popular Ethernet connections.
Highly Reliable
- No complex PC work stations
- Low power operation, low internal temperature rise
- Simple hardware and no disk drive (no moving parts)
- Reliable latched interface connections
- Rugged die-cast housing
- Standard Ethernet network connection
- Stable operation, no computer crashes, viruses, and lockups
- Tamper proof, no on/off and option switches, no adjustable devices
- ª Low Cost
- PC workstations NOT required
- Network software NOT required
- Network cards NOT required
- I/O expansion hardware NOT required
- Simplified installation and setup
Advanced Operations
- 256 text foreground and background color
- Icon display continuously showing connection status of Ethernet and keyboard
- Touch-screen support (serial interface)
- Status line display for showing status, messages, help items, alerts, or on-screen touch
- function keys (with touch screen support enabled).
- Beep tone pitch controllable in a command such that each station can beep with different pitch
- for easier identification
- 16 automatic timers individually displayable at any location on the screen
- 4 display modes (40-column, 60-column, 80-column and 106-column)
- Display bit-map files for build-card display support
Compact Size
- Module size: 6.3"W x 5.1"L x 1.0"H (160 x 130 x 25mm)
- Flexible Installation: Table Mount, Wall Mount, Display Bracket Mount, and Under-the-
- Counter Mount
- ª Highly Secure
- Designed to prevent illegal data copying through externally accessible removable media. The
- internally installed compact flash (optional) is for picture storage. Program code and data are
- not stored in the compact flash.
- Enhanced security through the proprietary command set
- Immune to viruses
Minimize Obsolescence Problems
- Upgrade LS6100 units with remote downloadable firmware.
Extensive Free Software Development Support
- High-level language software utilities allow developers to write application software with Visual Basic or Visual C++
- OCX control covers all of the Logic Net's command sets
- Multi-tasking programs are supported
- Command test program with source code to illustrate the applications of the command set
- Source code of mini-applications to answer all how-to-write questions
- Free phone and e-mail technical support
- SKU:
- 1032584295
