DP Xeon® Motherboards - Socket P (LGA 3647)
BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)
Supermicro's new generation X11 DP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 3TB DDR4 2666MHz in 24 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 10GBase-T/10G SFP+/56Gbps FDR InfiniBand networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN. The SuperWorkstation boards offer in addition 7.1 HD Audio, Thunderbolt AOC header, and up to 11 USB ports.
-
SKU:
- 1048970497
Manufacturer:
Supermicro Computer, Inc
Manufacturer Part Number:
MBD-X11DPH-T-B
Manufacturer Website Address:
http://www.supermicro.com
Brand Name:
Supermicro
Product Model:
X11DPH-T
Product Name:

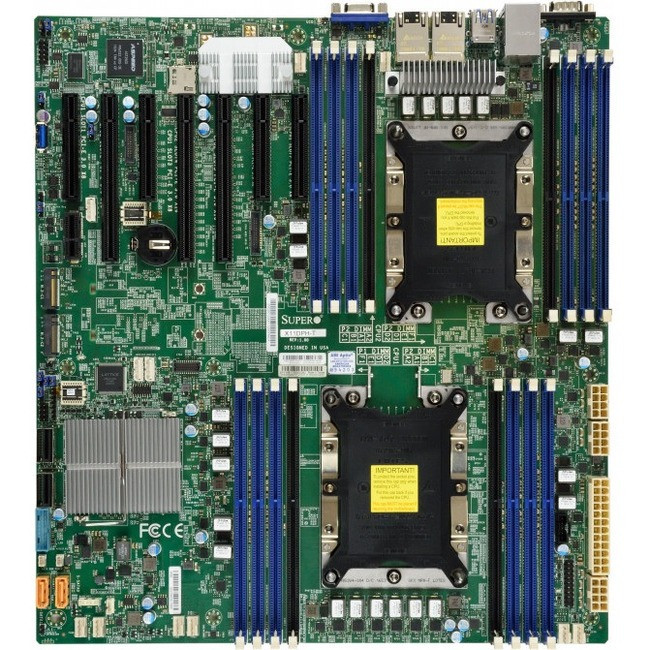

X11DPH-T Server Motherboard
Packaged Quantity:
1
Package Type:
Bulk
Product Type:
Server Motherboard
Chipset Manufacturer:
Intel
Chipset Model:
C624
Total Processor Supported:
2
Processor Socket:
Socket P LGA-3647
Processor Supported:
Xeon
Number of Memory Slots:
16
Memory Form Factor:
RDIMM,DIMM,LRDIMM
Maximum Memory Supported:
2 TB
Memory Speed Supported:
2666 MHz,2400 MHz,2133 MHz
Memory Technology:
DDR4 SDRAM
Controller Type:
Serial ATA/600
RAID Supported:
Yes
RAID Levels:
10,5,1,0
Onboard Video:
On-board Video Chipset
Graphics Controller Manufacturer:
ASPEED
Graphics Controller Model:
AST2500
Audio Channels:
7.1
10Gigabit Ethernet:
Yes
Number of Total Expansion Slots:
7
Total Number of PCI Express Slots:
7
Number of PCI Express x8 Slots:
4
Number of PCI Express x16 Slots:
3
Total Number of USB Ports:
4
Number of USB 3.0 Ports:
4
VGA:
Yes
Number of SATA Interfaces:
10
Number of M.2 Interfaces:
1
Total Number of Onboard USB Ports:
3
Number of Onboard USB 3.0 Ports:
3
Form Factor:
Extended ATX
Width:
13"
Depth:
12"
Compatibility:
SuperServer:
- SSG-2029P-E1CR24H
- SSG-2029P-E1CR24L
- SSG-6029P-E1CR12H
- SSG-6029P-E1CR12L
- SSG-6029P-E1CR12T
- SSG-2029P-ACR24H
- SSG-2029P-ACR24L
- SSG-6029P-E1CR16T
sku variation:
The Supermicro MBD-X11DPH-T-B is also known as SUP-MBDX11DPHTB or MBDX11DPHTB
Brand Logo:
https://content.etilize.com/Brand-Logo/1048970497.jpg
Short Description:
Super Micro, X11 DP Skylake, 16 Dimm DDR4, 4 Pci-e 3.0X8, 3PCI-E 3.0X16, Ncnr Required
