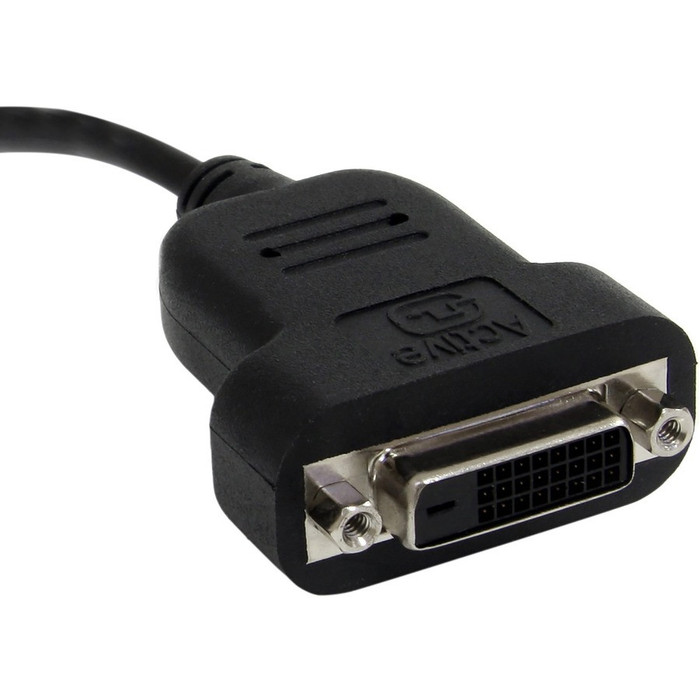

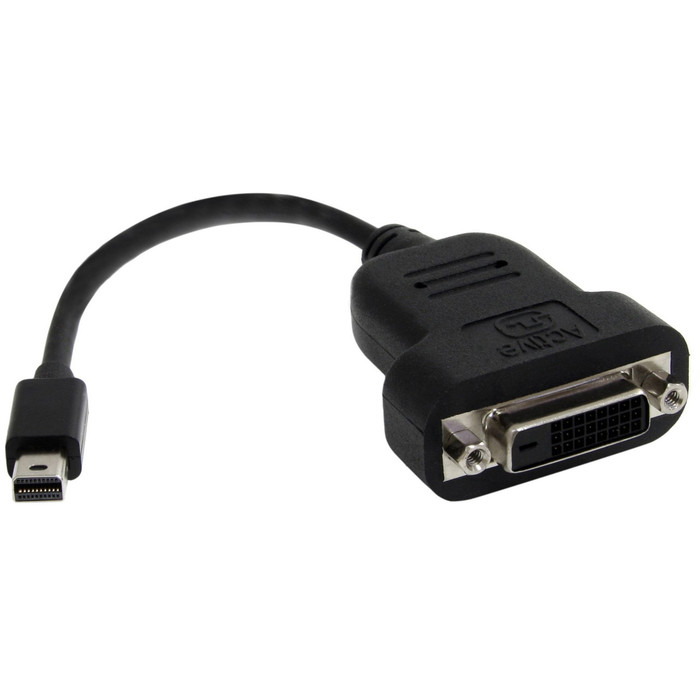

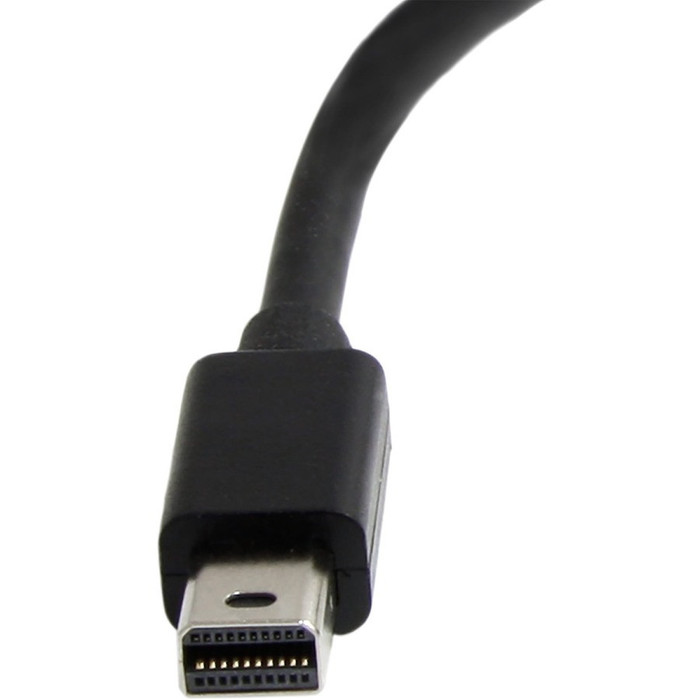

The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.
The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
-
SKU:
- 1019423478
Manufacturer:
StarTech.com
Manufacturer Part Number:
MDP2DVIS
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Model:
MDP2DVIS
Product Name:
Mini DisplayPort to DVI Active Adapter
Product Type:
Video Adapter
Connector Type on First End:
Mini DisplayPort 1.1 Digital Audio/Video - Male
Connector on First End Details:
1 x 20-pin Mini DisplayPort 1.1 Digital Audio/Video - Male
Connector Type on Second End:
DVI-D Digital Video - Female
Connector on Second End Details:
1 x 25-pin DVI-D Digital Video - Female
Features:
Active,Halogen Free,HDCP 1.3,Extended Display Identification Data (EDID)
Product Color:
Black
Weight (Approximate):
1.34 oz
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE,REACH
Country of Origin:
China
sku variation:
The StarTech.com MDP2DVIS is also known as STA-MDP2DVIS or MDP2DVIS
Brand Logo:
https://content.etilize.com/Brand-Logo/1019423478.jpg
Short Description:
Startech, Mini Displayport To DVI Active Adapter - Black - 1920 X 1200 (1080P)
Manufacturer-Brochure:
https://content.etilize.com/Manufacturer-Brochure/1019423478.pdf
User-Manual:
https://content.etilize.com/User-Manual/1019423478.pdf
Additional-pdf1:
https://content.etilize.com/Additional-pdf1/1019423478.pdf
Additional-pdf2:
https://content.etilize.com/Additional-pdf2/1019423478.pdf
