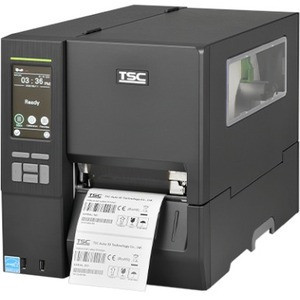

The MH241 Series is TSC's mainstream industrial barcode label printer built upon the legacy of the MH240 Series. It brings new features to those looking for solutions to address evolving business challenges from growing production line demands to increasing operational complexities.
The MH240 Series features premium printhead technology, fast processor, and all the memory customers will need to print high-quality labels delivered at the fastest speeds.
Sophisticated TSC Sense Care
The TSC TPH Care Mechanism offers an advanced level of auto-detection ensuring real-time printhead health status, to monitor and prevent down. In addition, the MH241 series supports various media with a pre-printed black mark on top or bottom sides by user's selection in the panel menu.
Dynamic Remote Printer Management
SOTI Connect and TSC Console provide enterprise remote printer management on multiple tasks to reduce maintenance costs and avoid downtime of business-critical devices.
Multi-Connectivity
The MH241 series offers GPIO to support common applicators and emulations along with an optional 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module.
Highly Adaptable to Various Media
MH241 printers can adapt to various media lengths and widths. With accurate printing positioning, the MH241 and MH241T are capable of peeling off minimum of 0.5-inch labels in length. Additionally, the mechanism for fine adjustment to avoid ribbon wrinkles and ensures label print quality.
Brilliant User Experience
The MH241T and MH241P can easily adjust the media near-end sensor to detect the media and remind users to change the media roll on color GUI display (Media near the end). The MH241 series allows users to easily replace printhead and platen roller without the need for specific tools.
-
SKU:
- 1072514922
Manufacturer:
TSC Auto ID Technology Co., Ltd
Manufacturer Part Number:
MH241T-A001-0301
Manufacturer Website Address:
http://www.tscprinters.com
Brand Name:
TSC Auto ID
Product Series:
MH
Product Model:
MH241T
Product Name:
MH Series 4-Inch Performance Industrial Printer
Product Type:
Direct Thermal/Thermal Transfer Printer
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
14.02 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
83.33 ft
Maximum Print Width:
4.09"
Barcode Symbology Supported:
Code 39,Code 93,Code 128 UCC,Code 128,Codabar,Interleaved 2 of 5,EAN-8,EAN-13,EAN-128,UPC-A/E,EAN and UPC 2(5) Digits Add-On,MSI,Plessey,POSTNET,RSS Stacked,GS1 DataBar,Code 11,China Post,PDF417,Maxi Code,Data Matrix,QR Code,AZTEC
Standard Memory:
512 MB
Parallel Port:
Yes
USB Host:
Yes
Serial Port:
Yes
USB:
Yes
Network Ready:
Yes
Ethernet:
Yes
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/ac/b/g/n
Display Screen:
Yes
Screen Size:
4.3"
Display Screen Type:
LCD
Touchscreen:
Yes
Cutter:
Yes
Media Type:
Continuous Label,Die-cut Label,Black Mark,Fanfold,Notch,Perforated Label,Tag
Media Sensor:
Gap Sensor,Black Mark Sensor,Head Open Sensor,Ribbon Encode Sensor,Paper Near End Sensor
Media Thickness:
11 mil
Maximum Label Width:
4.50"
Maximum Label Length:
83.33 ft
Language Emulation:
TSPL-EZD
Power Source:
AC,DC
Operating Temperature:
32°F (0°C) - 104°F (40°C)
Operating Relative Humidity:
25% - 85%
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Form Factor:
Tabletop
Height:
12.8"
Width:
10.9"
Depth:
19.8"
Weight (Approximate):
34.61 lb
Platform Supported:
PC
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE
Limited Warranty:
2 Year
sku variation:
The TSC Auto ID MH241T-A001-0301 is also known as TSC-MH241TA0010301 or MH241TA0010301
