Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

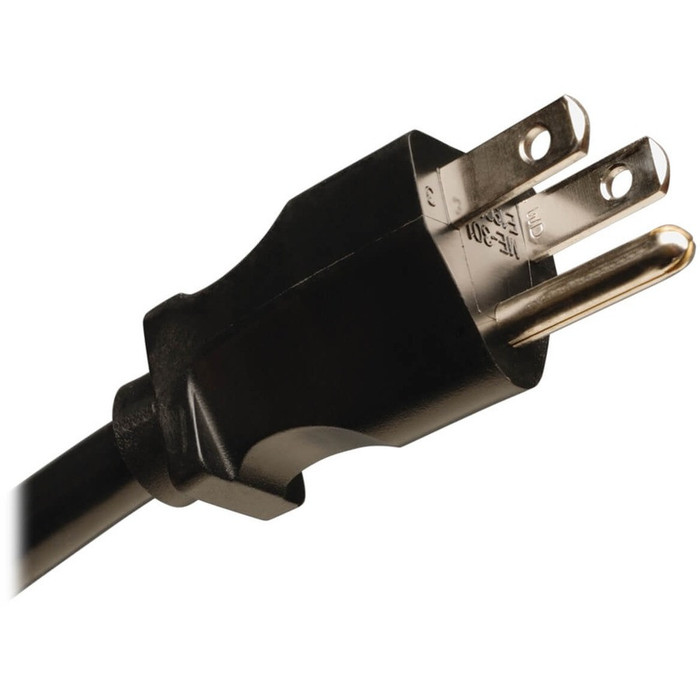

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU121506 features a single breakered load bank with 13 NEMA 5-15R outlets - 12 in the rear and one in front. A six-foot cord with NEMA 5-15P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 15A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. With a compatible rack and Tripp Lite's PDUSIDEBRKT accessory (sold separately), you can adapt the PDU121506 for vertical 0U rack-mounting as well.
-
SKU:
- 1066608264
Manufacturer:
Tripp Lite by Eaton
Manufacturer Part Number:
PDU121506
Manufacturer Website Address:
http://www.tripplite.com
Brand Name:
Tripp Lite
Product Model:
PDU121506
Product Name:
PDU121506 13-Outlets PDU
Product Type:
PDU
PDU Type:
Basic
Phase:
Single Phase
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
13 x NEMA 5-15R
Protection Type:
Overload Protection
Input Voltage:
120 V AC
Output Voltage:
100 V AC,120 V AC,127 V AC
Power Rating (Watt):
1900 W
Input Current:
15 A
Mounting Orientation:
Horizontal
Mount Type:
Rack-mountable
Rack Height:
1U
Height:
1.8"
Width:
17.5"
Depth:
4.5"
Weight (Approximate):
4.90 lb
Package Contents:
- PDU121506 13-Outlets PDU
- Rack-mounting hardware
- Owner's Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Limited Warranty:
5 Year
sku variation:
The Tripp Lite PDU121506 is also known as TRI-PDU121506 or PDU121506
Brand Logo:
https://content.etilize.com/Brand-Logo/1066608264.jpg
Short Description:
Tripp Lite, 1.8KW 120V Single-phase Basic PDU - 13 Nema 5-15R Outlets, 5-15P Input, 6 FT. Cord, 1U Rack-mount
