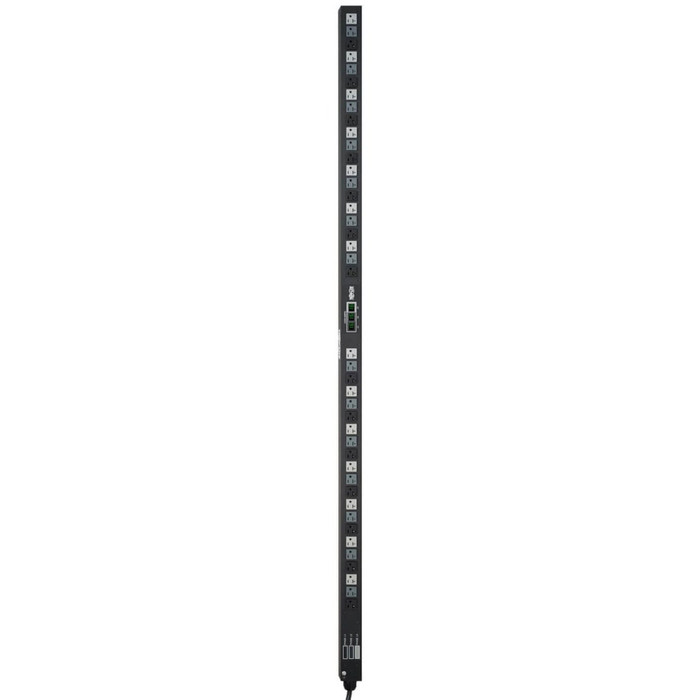

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
-
SKU:
- 1022854411
Manufacturer:
Tripp Lite by Eaton
Manufacturer Part Number:
PDU3MV6L2120LV
Manufacturer Website Address:
http://www.tripplite.com
Brand Name:
Tripp Lite
Product Series:
Metered
Product Model:
PDU3MV6L2120LV
Product Name:
3-Phase Metered PDU
Product Type:
PDU
Plug/Connector Type:
NEMA L21-20P
Receptacle Type:
NEMA 5-15/20R
Receptacle Detail:
42 x NEMA 5-15/20R
Input Voltage:
230 V AC
Output Voltage:
120 V AC
Power Rating (Watt):
5700 W
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Height:
70"
Width:
1.9"
Depth:
2.2"
Weight (Approximate):
12.57 lb
Package Contents:
- 3-Phase Metered PDU
- Cord Retention Brackets
- Rack Mounting Brackets
- User Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Limited Warranty:
2 Year
sku variation:
The Tripp Lite PDU3MV6L2120LV is also known as TRI-PDU3MV6L2120LV or PDU3MV6L2120LV
Brand Logo:
https://content.etilize.com/Brand-Logo/1022854411.jpg
Short Description:
Tripp Lite, PDU 3-PHASE Metered 120V 5.7 KW 42 5-15/20R L21-20P 0URM
