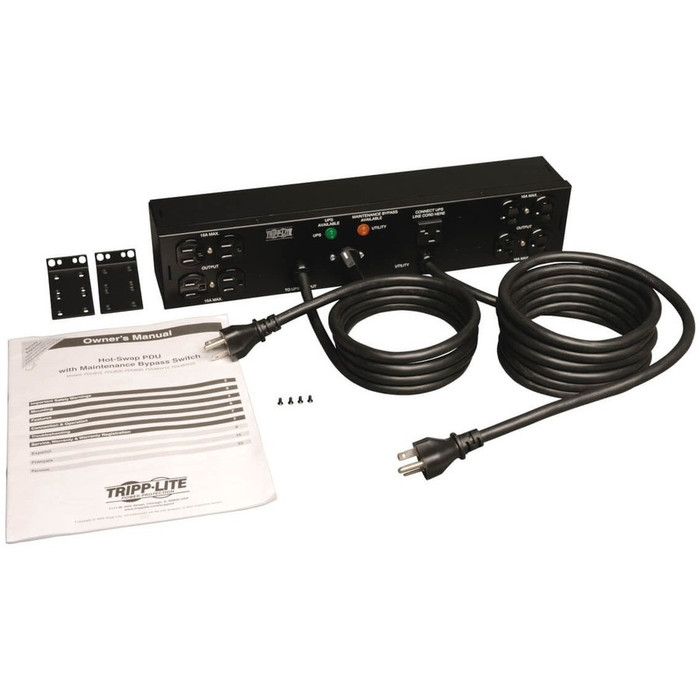

Tripp Lite's Hot-swap PDU systems enable live-replacement of standard UPS systems for maintenance with no interruption of connected server or networking loads. Dual input power cables support PDU connection to separate Utility and UPS power sources. Manual transfer switch with lighted status indicators controls the source of power to connected equipment between Utility and UPS. Set the switch to UPS during normal operation and connected equipment will receive full-time conditioned power from the UPS. Set the switch to Utility to momentarily power connected equipment from the Utility line cord and bypass the UPS while the UPS system is removed and replaced with a fresh one. Once the new UPS is up and running with all data and electrical connections restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS power to connected equipment.
-
SKU:
- 1016665267
Manufacturer:
Tripp Lite by Eaton
Manufacturer Part Number:
PDUB15
Manufacturer Website Address:
http://www.tripplite.com
Brand Name:
Tripp Lite
Product Model:
PDUB15
Product Name:
PDUB15 PDU Dual Source Hot Swap 12A 8 Outlet
Product Type:
PDU
Plug/Connector Type:
NEMA 5-15P
Plug/Connector Detail:
2 x NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
8 x NEMA 5-15R
Input Voltage:
120 V AC
Output Voltage:
127 V AC
Power Rating (VA):
1440 VA
Mounting Orientation:
Horizontal
Mount Type:
Rack-mountable
Rack Height:
2U
Height:
3.4"
Width:
17.3"
Depth:
3"
Weight (Approximate):
7.70 lb
Package Contents:
- PDUB15 PDU Dual Source Hot Swap 12A 8 Outlet
- 2U Mounting Brackets
- User Manual with Warranty Information
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Limited Warranty:
2 Year
