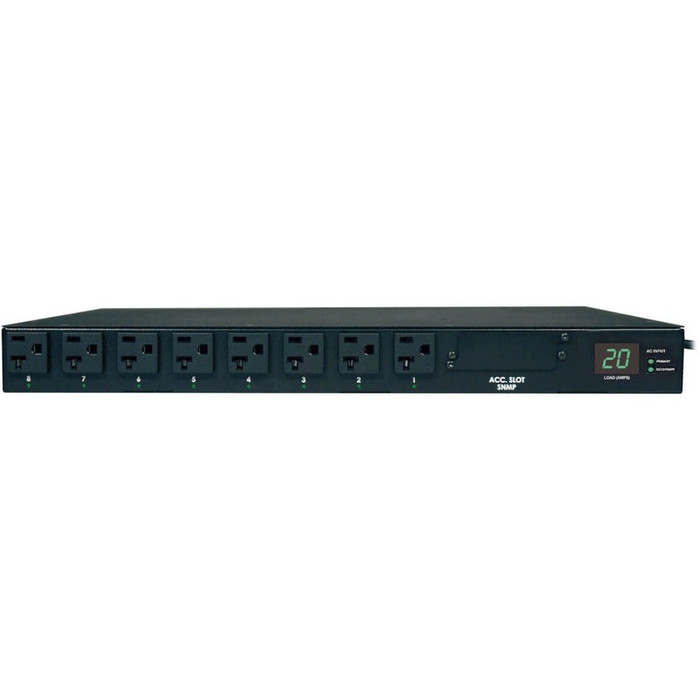

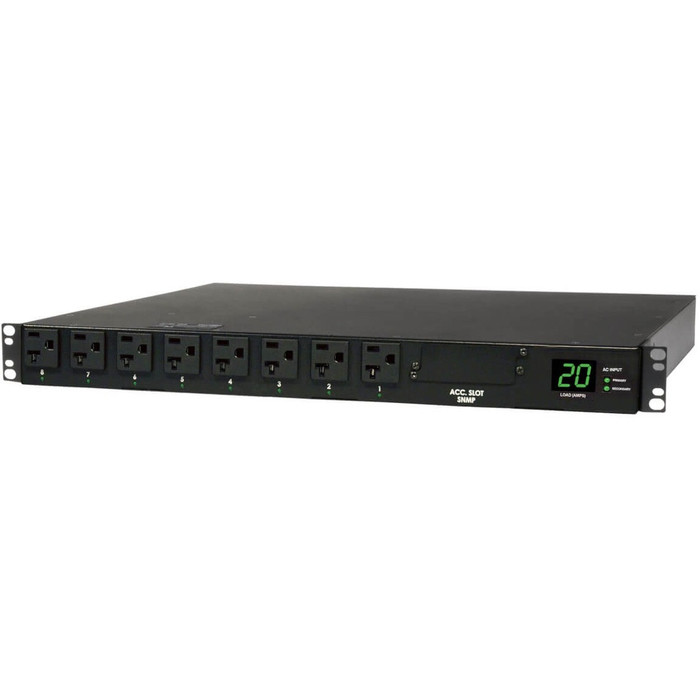

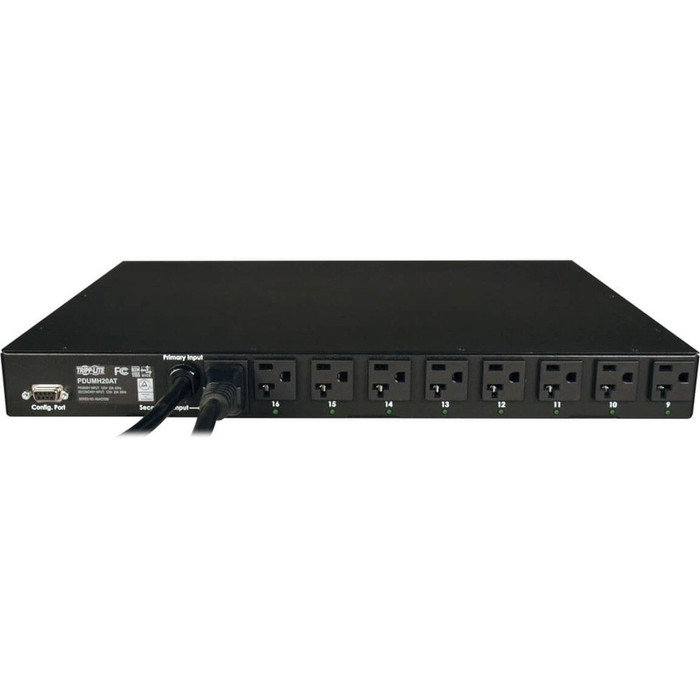

Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
-
SKU:
- 1010546934
Manufacturer:
Tripp Lite by Eaton
Manufacturer Part Number:
PDUMH20AT
Manufacturer Website Address:
http://www.tripplite.com
Brand Name:
Tripp Lite
Product Model:
PDUMH20ATNET
Product Name:
PDUMH20AT PDU Metered ATS 120V 20A 16 Outlet
Product Type:
PDU
Plug/Connector Type:
NEMA L5-20P
Plug/Connector Detail:
2 x NEMA L5-20P
Receptacle Type:
NEMA 5-15/20R
Receptacle Detail:
16 x NEMA 5-15/20R
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Power Rating (VA):
2400 VA
Management:
- Optional Automatic Transfer Switch (ATS) function enables setup for hot-swappable UPS maintenance bypass
- Dual UPS protection or dual AC input redundancy for critical single-corded network hardware
- Slot for optional SNMPWEBCARD
Mount Type:
Rack-mountable
Rack Height:
1U
Height:
1.8"
Width:
17.5"
Depth:
14.5"
Weight (Approximate):
12.20 lb
Package Contents:
- PDUMH20AT PDU Metered ATS 120V 20A 16 Outlet
- PDU with attached L5-20P input power cord
- Detachable C19 to NEMA L5-20P 12 ft/3.6m power cord for optional secondary input
- Two NEMA L5-20R to NEMA 5-20P plug adapters
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
TAA Compliant:
Yes
Limited Warranty:
2 Year
sku variation:
The Tripp Lite PDUMH20AT is also known as TRI-PDUMH20AT or PDUMH20AT
Brand Logo:
https://content.etilize.com/Brand-Logo/1010546934.jpg
Short Description:
Tripp Lite, 1.9KW Single-phase Local Metered Automatic Transfer Switch Pdu, 2 120V L5-20P / 5-20P Inputs, 16 5-15/20R Outputs, 1U, TAA
