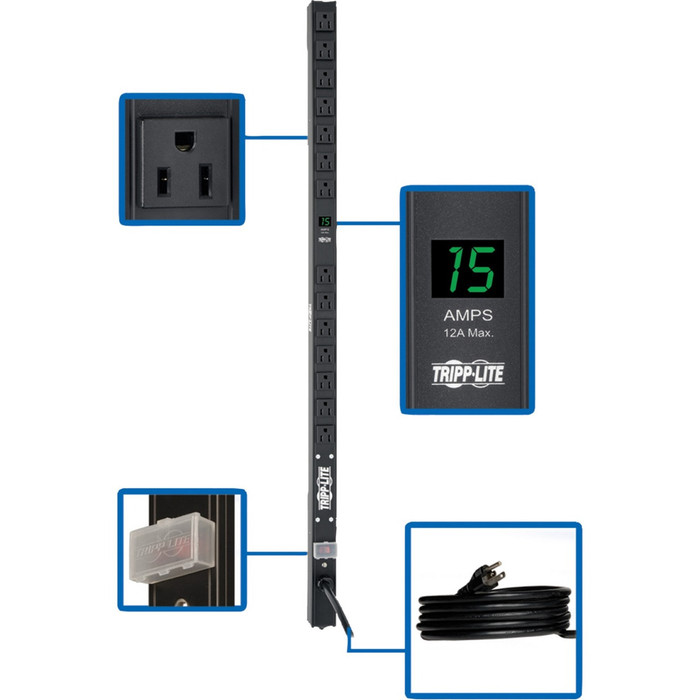

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
-
SKU:
- 1029698057
Manufacturer:
Tripp Lite by Eaton
Manufacturer Part Number:
PDUMV15-36
Manufacturer Website Address:
http://www.tripplite.com
Brand Name:
Tripp Lite
Product Model:
PDUMV15-36
Product Name:
PDUMV15-36 14-Outlets PDU
Product Type:
PDU
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
14 x NEMA 5-15R
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Power Rating (Watt):
1500 W
Input Current:
15 A
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Rack Height:
0U
Height:
36"
Width:
1.8"
Depth:
1.3"
Weight (Approximate):
3.31 lb
Package Contents:
- PDUMV15-36 14-Outlets PDU
- Bolt-down Bracket
- Spare Mounting Buttons
- Mounting Hardware
- Owner's Manual with Warranty Information
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Limited Warranty:
2 Year
sku variation:
The Tripp Lite PDUMV15-36 is also known as TRI-PDUMV1536 or PDUMV1536
Brand Logo:
https://content.etilize.com/Brand-Logo/1029698057.jpg
Short Description:
Tripp Lite, 1.4KW Single-phase Metered Pdu, 120V Outlets (14 5-15R), 5-15P, 15FT Cord, 0U Vertical, 36 IN.
