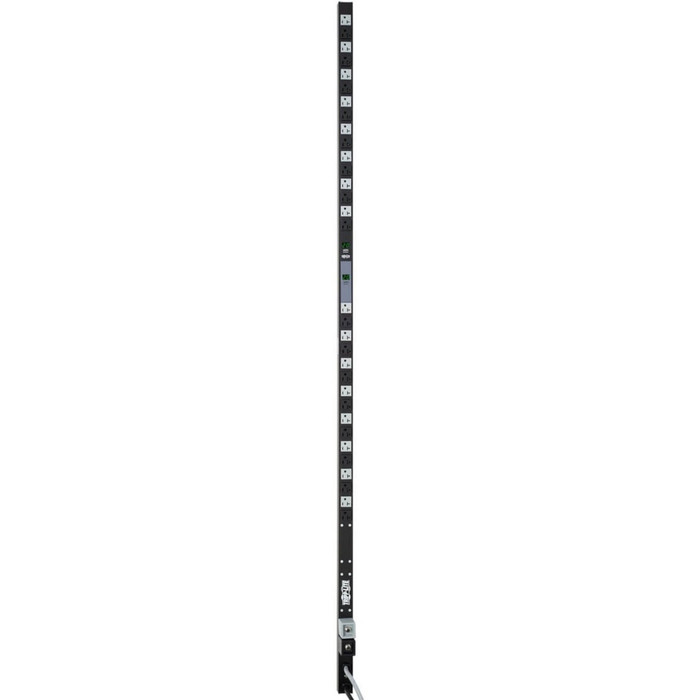

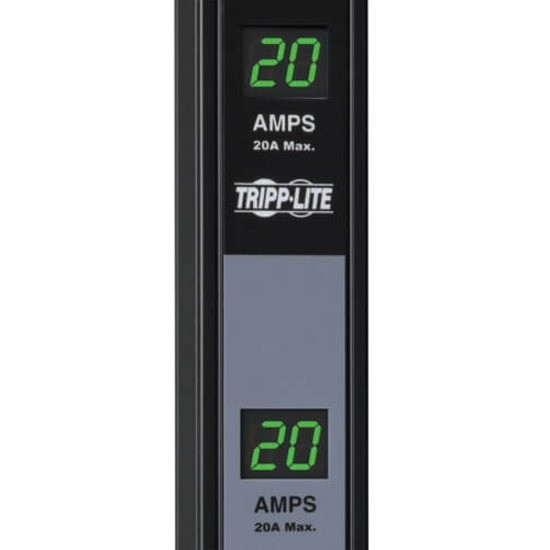

The PDUMV40 provides an efficient and manageable power distribution solution for multiple servers with dual redundant power supplies, or any other application that requires numerous outlets, high capacity, and a compact form factor. Dual input current monitoring display shows AC power consumption for each independent circuit. Switchless design eliminates accidental shutoff of connected equipment. Unfiltered electrical pass-through without a power switch makes the PDUMV40 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Each of two independent circuits' supports 16 outlets and equipment loads up to 2,400 watts32 outlets and 4,800 watts total capacity without consuming additional rack space.
-
SKU:
- 1010546930
Manufacturer:
Tripp Lite by Eaton
Manufacturer Part Number:
PDUMV40
Manufacturer Website Address:
http://www.tripplite.com
Brand Name:
Tripp Lite
Product Model:
PDUMV40
Product Name:
PDUMV40 PDU Metered DUAL 120V 40A 32 Outlet
Product Type:
PDU
Plug/Connector Type:
NEMA L5-20P
Plug/Connector Detail:
2 x NEMA L5-20P
Receptacle Type:
NEMA 5-15/20R
Receptacle Detail:
32 x NEMA 5-15/20R
Protection Type:
Overload Protection
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Power Rating (Watt):
4800 W
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Height:
3"
Width:
71.3"
Depth:
1.5"
Weight (Approximate):
8.20 lb
Package Contents:
- PDUMV40 PDU Metered DUAL 120V 40A 32 Outlet
- PDUMV40 Dual Vertical Circuit/Metered PDU
- Mounting Hardware
- Two NEMA L5-20P to 5-20P plug adapters
- Owner's Manual with warranty information
Environmentally Friendly:
Yes
Country of Origin:
China
Limited Warranty:
2 Year
