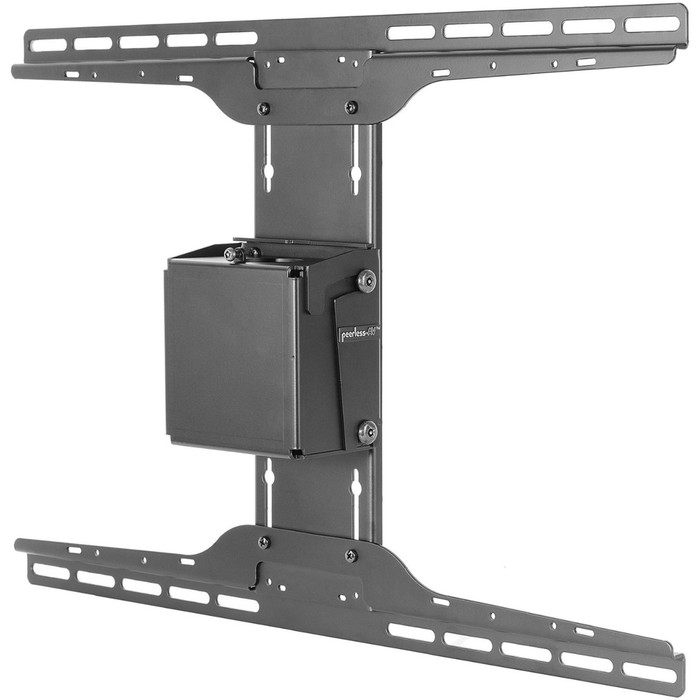

The SmartMount® PLCM-2-UNL Ceiling Mount utilize a 1.5" NPT extension pipe for versatility, support, and connection. The 1.5" NPT threaded pipe makes it simple to customize each mount to your specific application. The PLCM-2-UNL kit combines the PLP-UNL Universal I-Shaped Adaptor plate and the PLCM-2 tilt box, to deliver display mounting patterns of up to 600 x 400mm. When combined with Peerless-AV® ceiling plates and columns, it provides the perfect combination for flat panel ceiling mounting in sports facilities, airports, lobbies, or retail environments.
-
SKU:
- 1019117399
Manufacturer:
Peerless Industries, Inc
Manufacturer Part Number:
PLCM-2-UNL
Manufacturer Website Address:
http://www.peerless-av.com
Brand Name:
Peerless-AV
Product Model:
PLCM-2-UNL
Product Name:
Universal Ceiling Mount Adaptor For 32" To 75" Displays
Packaged Quantity:
1
Product Type:
Ceiling Mount
Device Supported:
Flat Panel Display
Maximum Load Capacity:
200 lb
Minimum Screen Size Supported:
32"
Maximum Screen Size Supported:
65"
Features:
360° Swivel,Scratch Resistant,Adjustable Tilt
Product Color:
Black
Mounting Pattern:
600 x 400
Height:
18"
Width:
30.8"
Depth:
4.4"
Weight (Approximate):
7.90 lb
Package Contents:
- 1 x Ceiling Arm Box
- 1 x Tilt Bracket
- 1 x Retaining Collar
- 4 x (M5 x 10 mm) Penta-Pin Screw
- 1 x (2.875 OD x 2.125 ID x .062) Fiber Washer
- 8 x (M10 x 15 mm) Penta-Pin Screw
- 1 x (M10 x 2") Penta-Pi
Compatibility:
Flat Panel Display
Country of Origin:
United States
Limited Warranty:
5 Year
sku variation:
The Peerless-AV PLCM-2-UNL is also known as PEE-PLCM2UNL or PLCM2UNL
Brand Logo:
https://content.etilize.com/Brand-Logo/1019117399.jpg
Short Description:
Peerless-av, PLCM-2 AND Plp-unl Adapter Plate
Manufacturer-Brochure:
https://content.etilize.com/Manufacturer-Brochure/1019117399.pdf
User-Manual:
https://content.etilize.com/User-Manual/1019117399.pdf
Accessories:
1015495907,10579121,1016095600,10513384,1015495887,1015495908,10505040,10577820,10579007,1015495888,1016095602,10508183,10508793,10512776,10579125,1015495889,10506820,10579128,10579129,1015495890,1015495904,10511862,10512164,10579130,10579123,1051308
