Ideally suited for applications at the point-of-sale (POS), the QuickScan QBT2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.

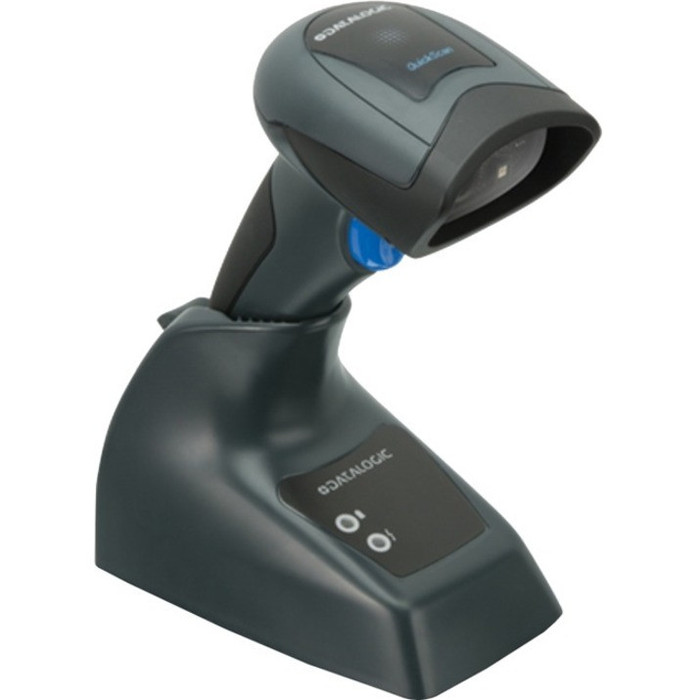

Featuring Bluetooth® Wireless Technology, the QuickScan QBT2400 2D imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v3.0 compliant device.
The QBT2400 2D imager can also be connected to any tablet using either iOS or Android operating systems via the Bluetooth HID profile.
-
SKU:
- 1028219734
Manufacturer:
Datalogic S.p.A
Manufacturer Part Number:
QBT2400-BK-BTK+
Manufacturer Website Address:
http://www.datalogic.com
Brand Name:
Datalogic
Product Line:
QuickScan I
Product Model:
QBT2400
Product Name:

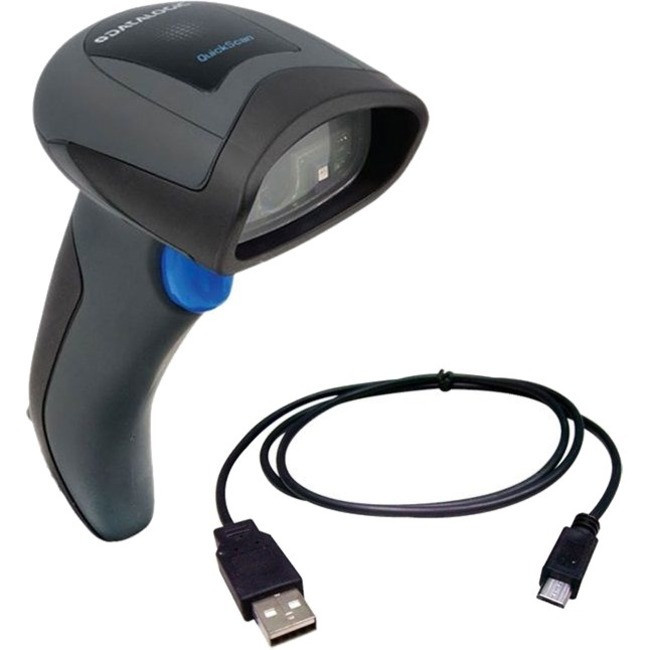

QuickScan I QBT2400 Mobile Barcode Scanner
Packaged Quantity:
2
Product Type:
Barcode Scanner
Connectivity Technology:
Wireless
Scanning Capability:
1D,2D
Barcode Symbology Supported:
1D / Linear Codes:
- Autodiscriminates all standard 1D codes including GS1 DataBar&trade linear codes
2D Codes:
- Aztec Code
- Aztec Mesas
- Data Matrix
- MaxiCode
- QR Code
- Mic
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanning Distance:
13.78"
Reading Angle (Skew):
60°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
25 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
6.6 mil
Bluetooth:
Yes
Battery Chemistry:
Lithium Ion (Li-Ion)
Form Factor:
Mobile
Product Color:
Black
Height:
6.4"
Width:
1.6"
Depth:
3.6"
Weight (Approximate):
7.05 oz
Ingress Protection (IP) Rating:
IP42
Application/Usage:
Industrial,Retail
Country of Origin:
Vietnam
sku variation:
The Datalogic QBT2400-BK-BTK+ is also known as DAT-QBT2400BKBTK or QBT2400BKBTK
