Ideally suited for applications at the point-of-sale (POS), the QuickScan QBT2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.
Featuring Bluetooth® Wireless Technology, the QuickScan QBT2400 2D imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v3.0 compliant device.
The QBT2400 2D imager can also be connected to any tablet using either iOS or Android operating systems via the Bluetooth HID profile.
-
SKU:
- 1028219733
Manufacturer:
Datalogic S.p.A
Manufacturer Part Number:
QBT2430-BK-BTK1
Manufacturer Website Address:
http://www.datalogic.com
Brand Name:
Datalogic
Product Line:
QuickScan I
Product Model:
QBT2430
Product Name:

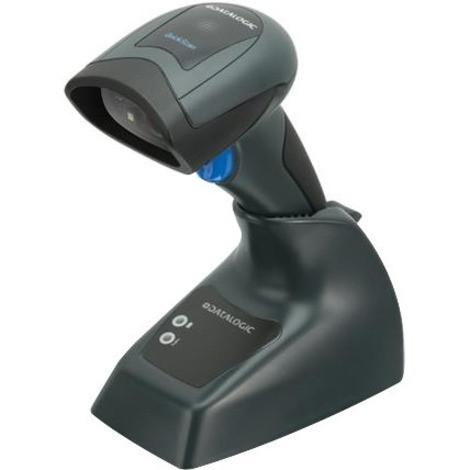

QuickScan I QBT2430 Mobile Barcode Scanner Kit
Packaged Quantity:
3
Product Type:
Barcode Scanner Kit
Connectivity Technology:
Wireless
Scanning Capability:
1D,2D
Barcode Symbology Supported:
1D / Linear Codes:
- Autodiscriminates all standard 1D codes including GS1 DataBar&trade linear codes
2D Codes:
- Aztec Code
- Aztec Mesas
- Data Matrix
- MaxiCode
- QR Code
- Mic
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanning Distance:
13.78"
Cable Type Included:
USB
Reading Angle (Skew):
60°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
25 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
6.6 mil
Bluetooth:
Yes
Host Interface:
USB
Battery Chemistry:
Lithium Ion (Li-Ion)
Form Factor:
Mobile
Product Color:
Black
Height:
6.4"
Width:
1.6"
Depth:
3.6"
Weight (Approximate):
7.05 oz
Ingress Protection (IP) Rating:
IP42
Application/Usage:
Industrial,Retail
Country of Origin:
Vietnam
sku variation:
The Datalogic QBT2430-BK-BTK1 is also known as DAT-QBT2430BKBTK1 or QBT2430BKBTK1
Brand Logo:
https://content.etilize.com/Brand-Logo/1028219733.jpg
Short Description:
Datalogic Adc, Quickscan QBT2430, 2D USB KIT BT BLK
User-Manual:
https://content.etilize.com/User-Manual/1028219733.pdf
