The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.
-
SKU:
- 1025083466
Manufacturer:
Datalogic S.p.A
Manufacturer Part Number:
QD2430-BK
Manufacturer Website Address:
http://www.datalogic.com
Brand Name:
Datalogic
Product Line:
QuickScan
Product Model:
QD2430
Product Name:

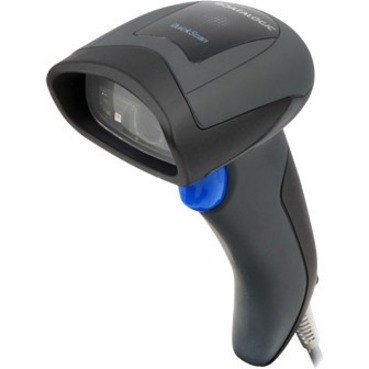

QuickScan QD2430 Mobile Barcode Scanner
Packaged Quantity:
1
Product Type:
Barcode Scanner
Connectivity Technology:
Cable
Scanning Capability:
1D,2D
Barcode Symbology Supported:
1D / Linear Codes:
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
2D Codes:
- Aztec Code
- Aztec Mesas
- Data Matrix
- MaxiCode
- QR Code
- Mi
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanner Range:
Standard Range
Scanning Distance:
13.78"
Cable Type Included:
USB
Reading Angle (Skew):
360°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
60°
Motion Tolerance:
25 in/s
Maximum Ambient Light:
86000 lux
Drop Specification:
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast:
25%
Minimum Element Resolution (Code 39):
5 mil
Minimum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
6.6 mil
Host Interface:
Keyboard Wedge,Serial,USB
Form Factor:
Mobile
Product Color:
Black
Height:
6.4"
Width:
1.6"
Depth:
3.6"
Weight (Approximate):
5.11 oz
Ingress Protection (IP) Rating:
IP42
Application/Usage:
Industrial,Retail
Country of Origin:
Vietnam
sku variation:
The Datalogic QD2430-BK is also known as DAT-QD2430BK or QD2430BK
Brand Logo:
https://content.etilize.com/Brand-Logo/1025083466.jpg
Short Description:
Datalogic Adc, Quickscan QD2430 2D Scanner Black, 3,5-14V
