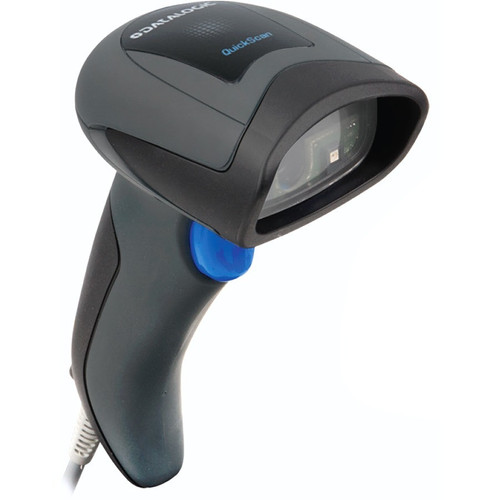

Datalogic QuickScan I QD2430 Mobile Barcode Scanner Kit QD2430-BKK1B

Part #: QD2430-BKK1B

Product Highlights

Datalogic Adc, Quickscan QD2430, 2D Area Imager, USB Kit, Auto-stand, BLK

MSRP: $427.00
$302.91
(You save $124.09 )

In stock

Adding to cart… The item has been added
Quantity discount
2 + Contact

The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.

The QuickScan™ QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure without sacrificing Datalogic's well-known durability.

Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code. The result is a precise aiming system which contributes to low eye fatigue, yet still allows top operator efficiency.

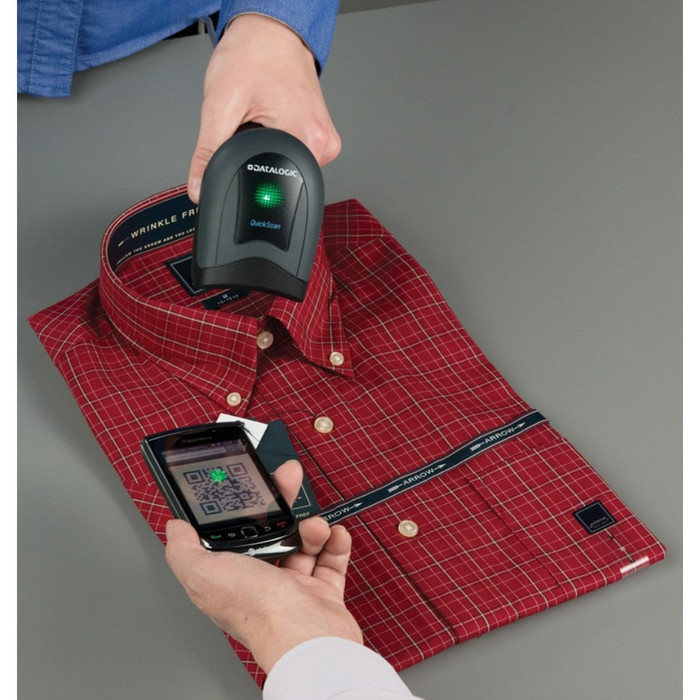

The QuickScan QD2400 imager reads typical printed linear bar codes as well as complex 2D bar codes displayed on the screen of a mobile device or loyalty cards. The QD2400 imager provides a fast, reliable scan from an elegant and robust 2D imager.

Imaging technology meets or exceeds the productivity compared to laser scanners and provides the additional advantages of a lower cost-of-ownership and greater product reliability over the long term.

SKU:
1026794908
Manufacturer:
Datalogic S.p.A
Manufacturer Part Number:
QD2430-BKK1B
Manufacturer Website Address:
http://www.datalogic.com
Brand Name:
Datalogic
Product Line:
QuickScan I
Product Model:
QD2430
Product Name:
QuickScan I QD2430 Mobile Barcode Scanner Kit
Packaged Quantity:
3
Product Type:
Barcode Scanner Kit
Connectivity Technology:
Cable
Scanning Capability:
1D,2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D Codes:

  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code
  • Mi
Image Sensor Type:
Imager
Scan Rate:
100 scan/s
Scan Pattern:
Omni-directional
Scanning Distance:
13.78"
Cable Type Included:
USB
Stand Included:
Yes
Reading Angle (Skew):
60°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
25 in/s
Maximum Ambient Light:
86000 lux
Drop Specification:
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
6.6 mil
Host Interface:
USB
Form Factor:
Mobile
Product Color:
Black
Height:
6.4"
Width:
1.6"
Depth:
3.6"
Weight (Approximate):
5.11 oz
Ingress Protection (IP) Rating:
IP42
Application/Usage:
Industrial,Retail
Country of Origin:
Vietnam
sku variation:
The Datalogic QD2430-BKK1B is also known as DAT-QD2430BKK1B or QD2430BKK1B
Brand Logo:
https://content.etilize.com/Brand-Logo/1026794908.jpg
Short Description:
Datalogic Adc, Quickscan QD2430, 2D Area Imager, USB Kit, Auto-stand, BLK
Accessories:
1010803519,1010803579,1010803590,1024897185,1032802425,1010803495,1031130313,1024920768,1010803610,1010803503,1024920764,1024920769,1010803609,1010803776,1045110992,1012037679,1010803502,1022694380,1010803598,1028219743,1041574930,1019799173,10416897

The Datalogic QD2430-BKK1B is also known as DAT-QD2430BKK1B or QD2430BKK1B
