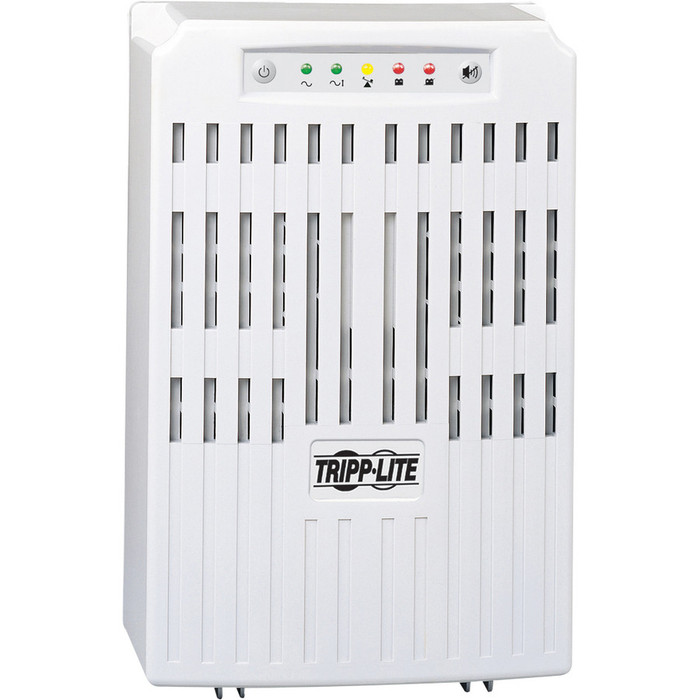

Tripp Lite's SMART 2200VS intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches. Large capacity 2200 VA/ 1600 watt rated UPS system offers 7 minutes runtime at full load and 19 minutes at half load during power failures. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 9 outlets, 3 pairs of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.
-
SKU:
- 10162312
Manufacturer:
Tripp Lite by Eaton
Manufacturer Part Number:
SMART2200VS
Manufacturer Website Address:
http://www.tripplite.com
Brand Name:
Tripp Lite
Product Line:
SmartPro
Product Name:
SmartPro SMART2200VS UPS
Product Type:
Line-interactive UPS
Plug/Connector Type:
NEMA 5-20P
Receptacle Type:
NEMA 5-15R,NEMA 5-20R
Receptacle Detail:
7 x NEMA 5-15R,2 x NEMA 5-20R
Transfer Time:
4 ms
Load Capacity:
2200 VA/1600 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Network Management:
SNMP Manageable
Alarm:
On Battery,Overload,Low Battery
Status Indicators:
Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
USB:
Yes
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
7 Minute
Backup/Run Time (Half Load):
19 Minute
Battery Life:
6 Year
Hot Swappable:
Yes
Typical Battery Recharge Time:
4 Hour
Maximum Operating Temperature:
104°F (40°C)
Height:
14.3"
Width:
9.3"
Depth:
12"
Form Factor:
Tower
Weight (Approximate):
52.40 lb
Package Contents:
- SmartPro SMART2200VS UPS
- SMART 2200VS UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual
Country of Origin:
China
Limited Warranty:
3 Year
sku variation:
The Tripp Lite SMART2200VS is also known as TRI-SMART2200VS or SMART2200VS
