Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
-
SKU:
- 1025883721
Manufacturer:
Tripp Lite by Eaton
Manufacturer Part Number:
SMX3000XLRT2UA
Manufacturer Website Address:
http://www.tripplite.com
Brand Name:
Tripp Lite
Product Line:
SmartPro
Product Model:
SMX3000XLRT2UA
Product Name:
SMX3000XLRT2UA UPS System
Product Type:
Line-interactive UPS
Plug/Connector Type:
IEC 60320 C20
Receptacle Type:
IEC 60320 C13,IEC 60320 C19
Receptacle Detail:
8 x IEC 60320 C13,1 x IEC 60320 C19
Load Capacity:
3000 VA/2700 W
Input Voltage:
230 V AC
Output Voltage:
230 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
350 J
Network Management:
SNMP Manageable
Alarm:
Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown,UPS StartUp
Status Indicators:

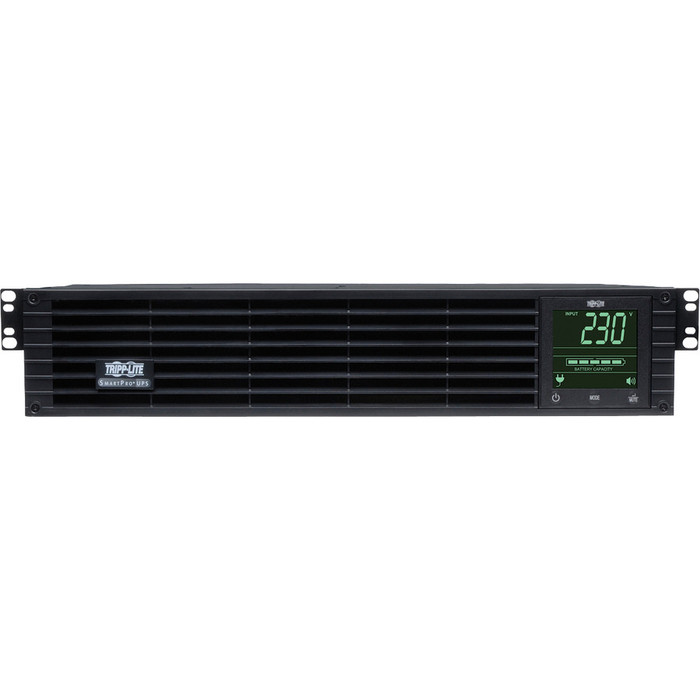

Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options
Serial Port:
Yes
USB:
Yes
Backup/Run Time (Full Load):
3.90 Minute
Backup/Run Time (Half Load):
11.10 Minute
Hot Swappable:
Yes
Typical Battery Recharge Time:
5 Hour
Maximum Operating Temperature:
104°F (40°C)
Thermal Dissipation:
46.31 W
Height:
3.5"
Width:
17.5"
Depth:
19.5"
Rack Height:
2U
Form Factor:
Rack/Tower
Weight (Approximate):
62.80 lb
Package Contents:
- SMX3000XLRT2UA UPS System
- PowerAlert Software CD
- 4 Post Rackmount Installation Kit
- 3 x C13/C14 Power Cables
- Instruction Manual
- USB Cable
- DB9 Cable
- EPO Cable
Software Included:
PowerAlert Monitoring Software
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Limited Warranty:
2 Year
