Tripp Lite 12U Wall Mount Rack Enclosure Cabinet Hinged Industrial NEMA SRW12USNEMA

Part #: SRW12USNEMA

Product Highlights

Tripp Lite, Smartrack 12U Nema 12 Switch-depth Wall-mount Rack Enclosure Cabinet For Harsh Environments, Hinged Back

MSRP: $1,355.32
$1,013.10
(You save $342.22 )

In stock

Adding to cart… The item has been added
Quantity discount
2 + Contact

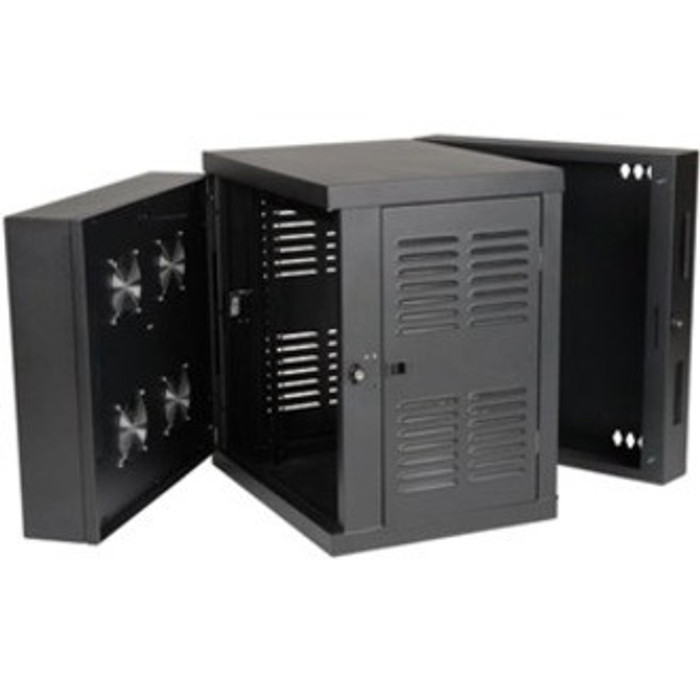

The SRW12USNEMA SmartRack 12U NEMA 12 Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in harsh, dirty work environments with limited floor space, such as factories, construction areas, utility plants, power stations, transportation Computers, distribution hubs and warehouses. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The SRW12USNEMA has a NEMA 12 (IP54) protection rating, protecting sensitive equipment against dirt, dust, lint, oil, drips and splashes. Its built-in air filter, louvered vents on the front door and side panels, sealed gasket around the door frames and brush strips around cable access points prevent dripping water, oil and airborne contaminants from getting inside. You can replace the air filter with standard, off-the-shelf furnace filters. Four high-performance intake fans built into the front door pull filtered air through the cabinet to keep your equipment cool. The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The reversible doors can open left or right. The doors and side panels lock securely to help prevent damage, tampering or theft. Convenient ports on the back door allow easy cable routing. The SRW12USNEMA comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to house equipment up to 20.5 inches deep, such as network switches and patch panels.
SKU:
1022615184
Manufacturer:
Tripp Lite by Eaton
Manufacturer Part Number:
SRW12USNEMA
Manufacturer Website Address:
http://www.tripplite.com
Brand Name:
Tripp Lite
Product Line:
SmartRack
Product Model:
SRW12USNEMA
Product Name:
SmartRack SRW12USNEMA Rack Cabinet
Product Type:
Rack Cabinet
Form Factor:
Wall Mountable
Product Color:
Black
Static/Stationary Weight Capacity:
200 lb
Height:
25"
Width:
23.6"
Depth:
21.6"
Rack Height:
12U
Rack Width:
19"
Weight (Approximate):
60 lb
Package Contents:
  • SmartRack SRW12USNEMA Rack Cabinet
  • 20 x M6 Cagenuts
  • 20 x M6 Screws
  • 20 x Washers
  • 2 x Keys
  • 1 x Removable/Replaceable Dust Filter
  • Owner's Manual
Assembly Required:
No
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Limited Warranty:
2 Year
sku variation:
The Tripp Lite SRW12USNEMA is also known as TRI-SRW12USNEMA or SRW12USNEMA
Brand Logo:
https://content.etilize.com/Brand-Logo/1022615184.jpg
Short Description:
Tripp Lite, Smartrack 12U Nema 12 Switch-depth Wall-mount Rack Enclosure Cabinet For Harsh Environments, Hinged Back
Manufacturer-Brochure:
https://content.etilize.com/Manufacturer-Brochure/1022615184.pdf
Accessories:
1029288524,1021473483,1012000747,1016893537,1012000736,1012000748,1011967305,1012000681,1012000744,1012000680

The Tripp Lite SRW12USNEMA is also known as TRI-SRW12USNEMA or SRW12USNEMA
