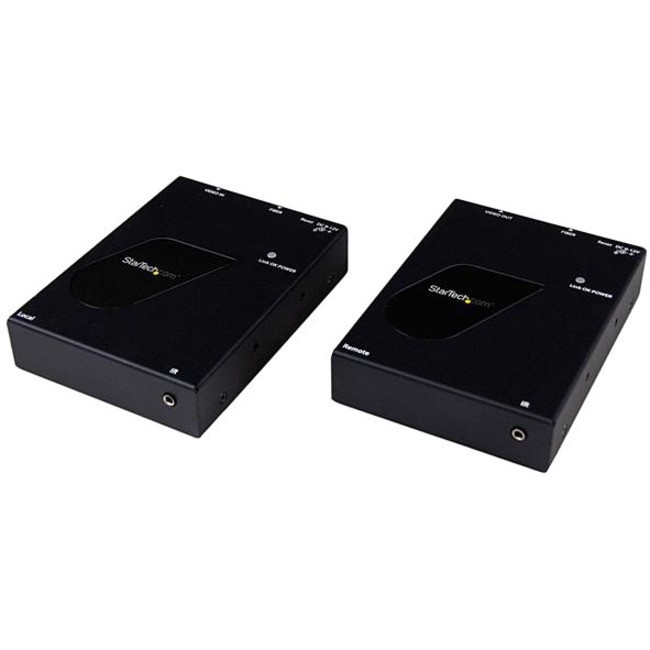

The ST121HDFXA is a long-range HDMI video extender kit that uses SC fiber optic cable to extend video/audio from an HDMI-equipped device to a remote display up to 2600 feet (800 Meters) away. The extender supports full High-Definition video (1920x1200 / 1080p) and includes both the transmitter and receiver, for a complete ready-to-use digital signage solution.
Not only is this an incredibly long range solution that can extend an HDMI signal across or between buildings, but because fiber optics transmit data using light rather than copper, it will not cause or be effected by electromagnetic Interference (EMI).
For convenient, time-saving control of the media source, the HDMI extender also offers Infrared (IR) extension, which enables you to control the HDMI audio-video source from either end of the connection. The kit also includes optional mounting hardware for a clean and professional installation.
The ST121HDFXA HDMI over Fiber Optic Extender kit is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
-
SKU:
- 1024642917
Manufacturer:
StarTech.com
Manufacturer Part Number:
ST121HDFXA
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
HDMI Over Fiber Extender with IR Control -SC Fiber-2600ft (800m)-1920x1200/1080p
Product Type:
Video Extender Transmitter/Receiver
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
2600 ft
Graphics Modes:
WUXGA
Maximum Video Resolution:
1920 x 1200
HDMI In:
Yes
HDMI Out:
Yes
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Number of SC Ports:
2
Media Type Supported:
Optical Fiber
Product Color:
Black
Transmitter Height:
1"
Transmitter Width:
3.80"
Transmitter Depth:
5.10"
Receiver Height:
1"
Receiver Width:
3.80"
Receiver Depth:
5.10"
Form Factor:
Rack-mountable,Desktop
Transmitter Weight (Approximate):
1.01 lb
Receiver Weight (Approximate):
1.01 lb

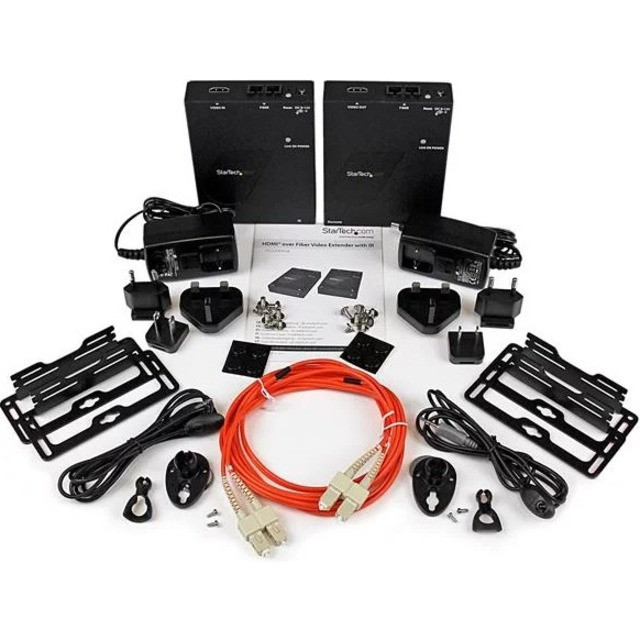

Package Contents:
- 1 x Local HDMI Extender Unit
- 1 x Remote HDMI Receiver Unit
- 1 x IR Receiver Cable
- 1 x IR Transmitter Cable
- 2 x Mounting Brackets
- 1 x Multi-mode SC-SC duplex Fiber Optic cable
- 2 x Foot Pad
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE,REACH
TAA Compliant:
Yes
Limited Warranty:
2 Year
sku variation:
The StarTech.com ST121HDFXA is also known as STA-ST121HDFXA or ST121HDFXA
Brand Logo:
https://content.etilize.com/Brand-Logo/1024642917.jpg
Short Description:
Startech, Hdmi Over Fiber Extender With IR Control - Hdmi To SC Fiber Converter Extender UP To 2600FT (800M) - 1920X1200 / 1080P
Manufacturer-Brochure:
https://content.etilize.com/Manufacturer-Brochure/1024642917.pdf
User-Manual:
https://content.etilize.com/User-Manual/1024642917.pdf
