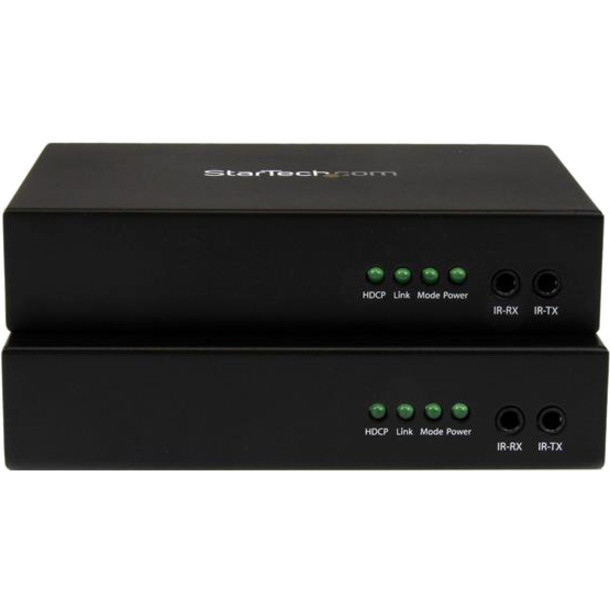

The ST121HDT4P HDMI over CAT5e/6 Video Extender kit lets you extend HDMI video and audio by up to 330 feet (100 Meters) over a single Cat5e/6 cable. For added versatility both the extender and receiver can be powered by the same single power source using Power Over Cable (POC).
This versatile HDMI extender also allows you to extend infrared for an IR Remote Control, and 2 Ethernet LAN connections over the same Cat5e/6 cable.
With the A/V industry adopting 4K as its new high-resolution standard, long-range video distribution can be difficult, especially considering the 4K distance limitations on standard HDMI cables. You'll be amazed at how this HDBase-T extender kit can deliver your 4K video signal at up to 295 ft. away from your video source.
The extender kit is also backward compatible with 1080p at 330 feet (100 m), so you can comfortably use it to make any video source look great.
The HDMI over Cat6 Video Extender kit includes both the local transmitter and remote receiver units, perfect for point-to-point digital signage applications that require high quality HDMI video.
For additional distance, HDMI cables up to 32-feet (10-meters) in length can be used on the local and remote end.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
-
SKU:
- 1024805987
Manufacturer:
StarTech.com
Manufacturer Part Number:
ST121HDT4P
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
HDMI over Single Cat 5e/6 Extender with Power over Cable Ethernet and IR -330 ft
Product Type:
Video Extender Transmitter/Receiver
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
328.08 ft
Graphics Modes:
4K
Maximum Video Resolution:
3840 x 2160
Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Number of Network (RJ-45) Ports:
6
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Product Color:
Black
Transmitter Height:
2.90"
Transmitter Width:
5.70"
Transmitter Depth:
8.10"
Receiver Height:
2.90"
Receiver Width:
5.70"
Receiver Depth:
8.10"
Transmitter Weight (Approximate):
1.74 lb
Receiver Weight (Approximate):
1.74 lb
Package Contents:
- 1 x HDMI Extender Transmitter Unit
- 1 x HDMI Extender Receiver Unit
- 1 x Instruction Manual
- 1 x Universal Power Adapter (NA/UK/EU)
- 2 x IR Extender Cables
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE,REACH
Limited Warranty:
2 Year
sku variation:
The StarTech.com ST121HDT4P is also known as STA-ST121HDT4P or ST121HDT4P
Brand Logo:
https://content.etilize.com/Brand-Logo/1024805987.jpg
Short Description:
Startech, Hdmi Over Single CAT 5E/6 Extender With Power Over Cable Ethernet AND Inrared IR - Hdmi Over Ethernet Cable 1080P - 330 FT
Manufacturer-Brochure:
https://content.etilize.com/Manufacturer-Brochure/1024805987.pdf
User-Manual:
https://content.etilize.com/User-Manual/1024805987.pdf
