The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables.For added versatility the kit features Power Over Cable andonly requires asingle power adapter that can be connected to either the Transmitter or Receiver.
With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.
For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.
The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed.Plus, withPowerOverCable, you can easily extend anHDMI signal inareas where access to power outlets is limited.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
-
SKU:
- 1025654361
Manufacturer:
StarTech.com
Manufacturer Part Number:
ST121SHD50
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m)
Packaged Quantity Condition:
Kit
Product Type:
Video Extender Transmitter/Receiver
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
164.04 ft
Graphics Modes:
Full HD
Maximum Video Resolution:
1920 x 1080
Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Number of Network (RJ-45) Ports:
4
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Product Color:
Black
Transmitter Height:
0.80"
Transmitter Width:
2"
Transmitter Depth:
3.10"
Receiver Height:
0.80"
Receiver Width:
2"
Receiver Depth:
3.10"
Form Factor:
Rack-mountable
Transmitter Weight (Approximate):
11.08 oz
Receiver Weight (Approximate):
11.08 oz
Package Contents:

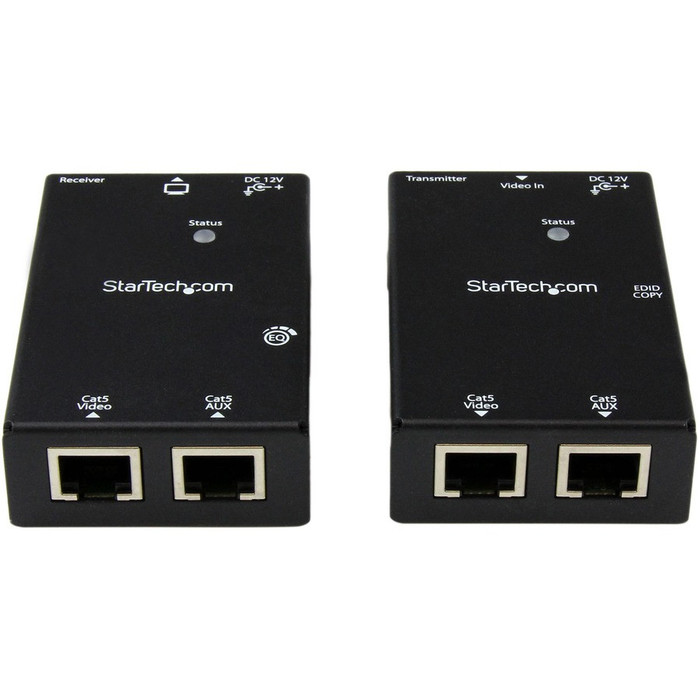

- 1 x HDMI over CAT5e/6 UTP Transmitter
- 1 x HDMI over CAT5e/6 UTP Receiver
- 1 x Universal Power Adapter (NA / EU / UK / AU)
- 2 x Mounting Brackets
- 2 x Foot Pad Set
- 1 x Instruction Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE,REACH
Country of Origin:
Taiwan
TAA Compliant:
Yes
Limited Warranty:
2 Year
sku variation:
The StarTech.com ST121SHD50 is also known as STA-ST121SHD50 or ST121SHD50
