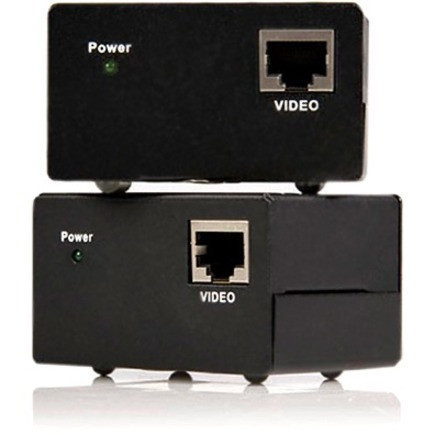

The ST121UTPDVI DVI Video Extender over Cat 5 UTP lets you extend a DVI Digital (DVI-D) video signal over Category 5 (or better) cable at distances of up to 150-feet (45-meters) from the video source to the intended display, without sacrificing video quality.
This cost-effective video extender is simple to use and offers a compact form factor, helping to save valuable work space.
With support for resolutions up to 1600x1200, this DVI extender can be easily integrated using existing Ethernet infrastructure wiring, and offers a completely hardware-based solution with no software or drivers required - perfect for any small scale point-to-point digital signage application that requires high quality DVI video.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
-
SKU:
- 1011304418
Manufacturer:
StarTech.com
Manufacturer Part Number:
ST121UTPDVI
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
DVI Video Extender over Cat 5 UTP
Packaged Quantity Condition:
Kit
Product Type:
Video Extender Transmitter/Receiver
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
147.64 ft
Graphics Modes:
UXGA
Maximum Video Resolution:
1600 x 1200
Network (RJ-45):
Yes
DVI In:
Yes
DVI Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of DVI Inputs:
1
Number of DVI Outputs:
1
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Product Color:
Black
Transmitter Height:
1.50"
Transmitter Width:
2"
Transmitter Depth:
2.60"
Receiver Height:
1.50"
Receiver Width:
2"
Receiver Depth:
2.60"
Transmitter Weight (Approximate):
10.10 oz
Receiver Weight (Approximate):
10.10 oz
Package Contents:
- 1 x DVI Local Unit Extender
- 1 x DVI Remote Unit Extender
- 2 x Power Adapters
- 1 x Instruction Manual
Application/Usage:
Digital Signage System
Environmentally Friendly:
Yes
Environmental Certification:
WEEE,RoHS,REACH
Country of Origin:
Taiwan
TAA Compliant:
Yes
Limited Warranty:
2 Year
sku variation:
The StarTech.com ST121UTPDVI is also known as STA-ST121UTPDVI or ST121UTPDVI
Brand Logo:
https://content.etilize.com/Brand-Logo/1011304418.jpg
Short Description:
Startech, DVI Over CAT5 Video Extender - DVI Video Extender KIT - 150 FT (50M)
User-Manual:
https://content.etilize.com/User-Manual/1011304418.pdf
