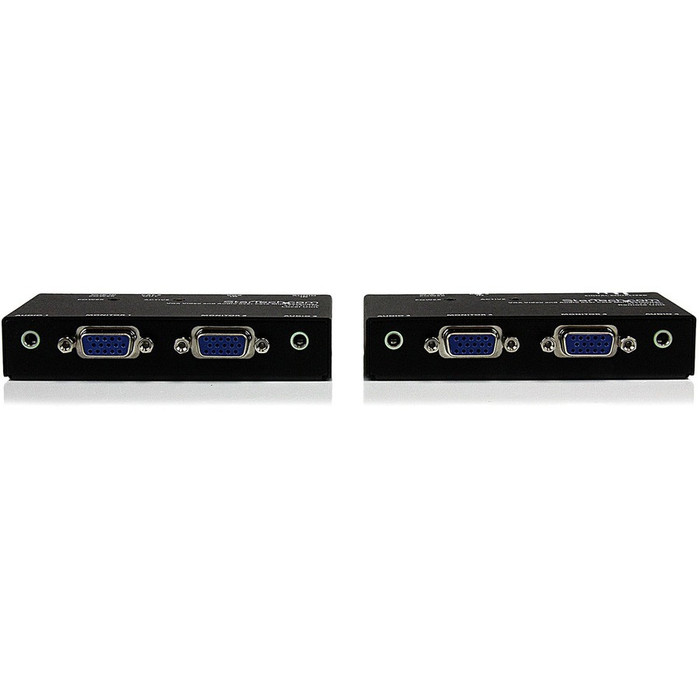

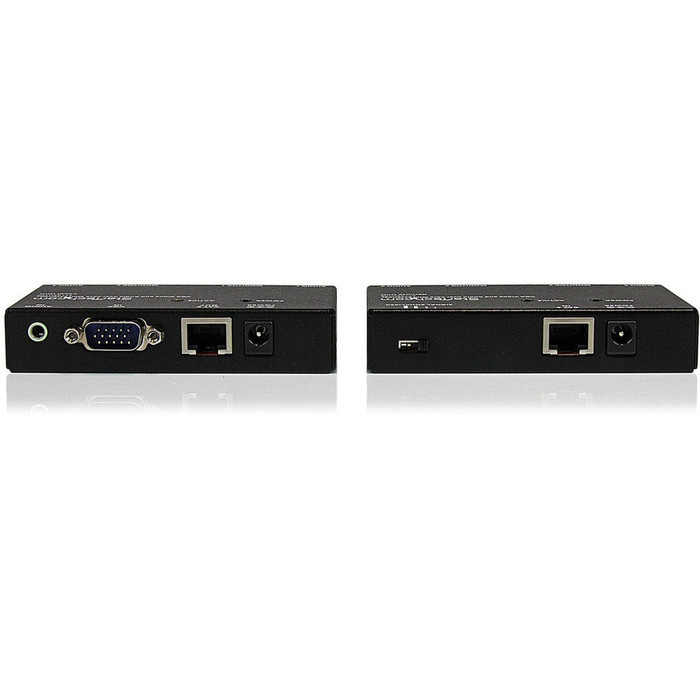

The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft.
The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
-
SKU:
- 1012709331
Manufacturer:
StarTech.com
Manufacturer Part Number:
ST122UTPA
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
VGA Video Extender over Cat 5 with Audio
Packaged Quantity Condition:
Kit
Product Type:
Video Extender Transmitter/Receiver
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
4
Maximum Operating Distance:
150 ft
Graphics Modes:
XGA
Maximum Video Resolution:
1440 x 900
Network (RJ-45):
Yes
VGA In:
Yes
VGA Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of VGA Inputs:
2
Number of VGA Outputs:
2
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Product Color:
Black
Transmitter Height:
0.80"
Transmitter Width:
3.30"
Transmitter Depth:
2.40"
Form Factor:
Desktop
Transmitter Weight (Approximate):
6.40 oz
Package Contents:
- 1 x Local VGA Extender Unit
- 1 x Remote VGA Extender Unit
- 1 x Mounting Bracket for Receiver (w/ screws)
- 2 x Sets Rubber Feet
- 2 x Power Adapter
- 1 x Instruction Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE,REACH
Country of Origin:
Taiwan
TAA Compliant:
Yes
Limited Warranty:
2 Year
sku variation:
The StarTech.com ST122UTPA is also known as STA-ST122UTPA or ST122UTPA
Brand Logo:
https://content.etilize.com/Brand-Logo/1012709331.jpg
Short Description:
Startech, VGA Video Extender Over CAT 5 With Audio - UP To 500FT (150M) - VGA Over CAT5 Extender - 1 Local AND 1 Remote
Additional-pdf1:
https://content.etilize.com/Additional-pdf1/1012709331.pdf
Additional-pdf2:
https://content.etilize.com/Additional-pdf2/1012709331.pdf
