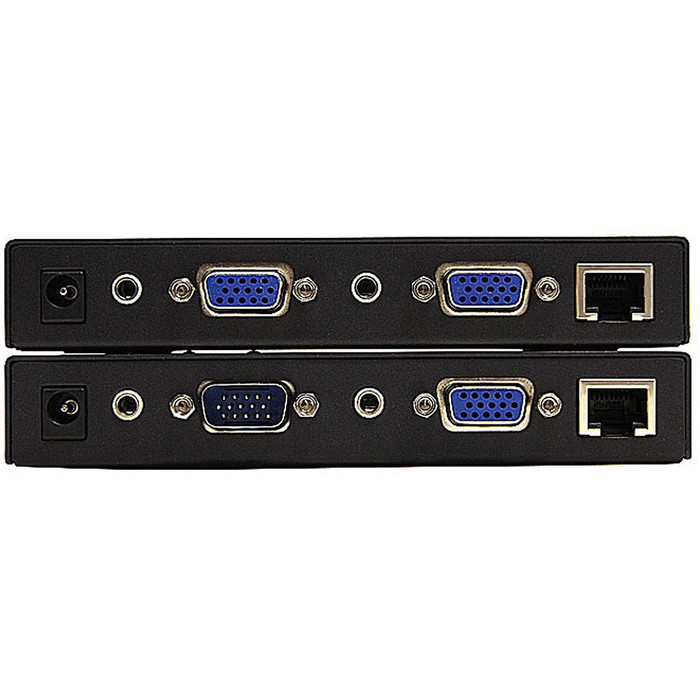

The ST122UTPAL VGA and Audio over Cat5 Video Extender (long range) lets you extend a VGA video signal, as well as the accompanying audio from a single PC over Cat5 (or better) cabling to 4 (2 local, 2 remote) monitors.
The VGA (and audio) extender is a complete solution that includes both the transmitter and receiver, and features a unique control dial to toggle displays connected to the receiver on and off, and adjust audio volume. The control wheel can also be used to help fine tune your signal by offering RGB (Red, Green, Blue) SKEW calibration, as well as control of gain and brightness.
Extending video distances up to 300m (950ft), the transmitter offers an EDID copy feature that delivers optimal resolutions and increased compatibility with the remote displays, making it a versatile solution for digital signage and point-of-sale applications.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
-
SKU:
- 1017119107
Manufacturer:
StarTech.com
Manufacturer Part Number:
ST122UTPAL
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Line:
Converge A/V
Product Name:
Long Range VGA over Cat5 Video Extender 300m / 950 ft - 1920x1080
Product Type:
Video Extender Transmitter/Receiver
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
2
Maximum Operating Distance:
984.25 ft
Graphics Modes:
Full HD
Maximum Video Resolution:
1920 x 1080
Network (RJ-45):
Yes
VGA In:
Yes
VGA Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of VGA Inputs:
1
Number of VGA Outputs:
4
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Product Color:
Black
Transmitter Height:
0.90"
Transmitter Width:
0.90"
Transmitter Depth:
5.50"
Receiver Height:
0.90"
Receiver Width:
0.90"
Receiver Depth:
5.50"
Transmitter Weight (Approximate):
2.14 lb
Receiver Weight (Approximate):
2.14 lb
Package Contents:
- 1 x Transmitter
- 1 x Receiver Kit
- 2 x Sets Mounting Brackets
- 2 x Grounding Wires
- 2 x Power Adapters
- 1 x Instruction Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE,REACH
Country of Origin:
Taiwan
TAA Compliant:
Yes
Limited Warranty:
2 Year
sku variation:
The StarTech.com ST122UTPAL is also known as STA-ST122UTPAL or ST122UTPAL
Brand Logo:
https://content.etilize.com/Brand-Logo/1017119107.jpg
Short Description:
Startech, Long Range VGA Over CAT5 Video Extender 300M / 950 FT - 1920X1080
Additional-pdf1:
https://content.etilize.com/Additional-pdf1/1017119107.pdf
Additional-pdf2:
https://content.etilize.com/Additional-pdf2/1017119107.pdf
Accessories:
1017942139
