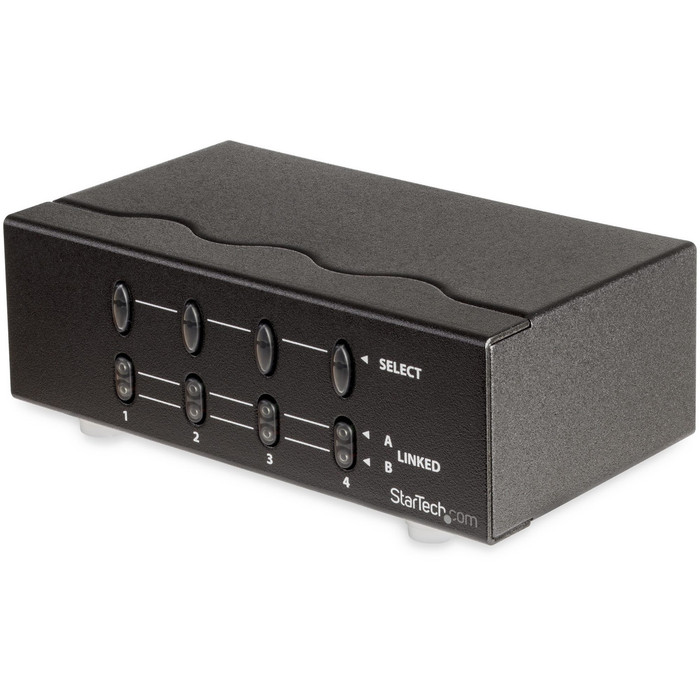

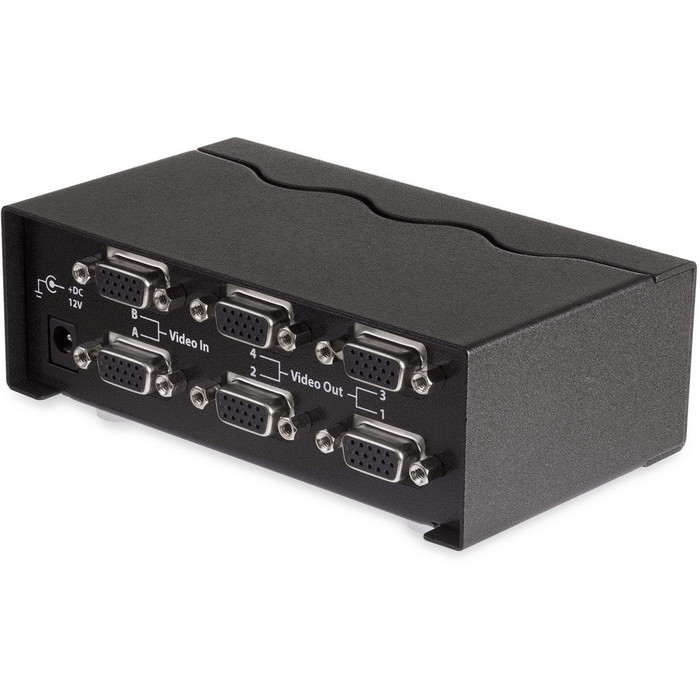

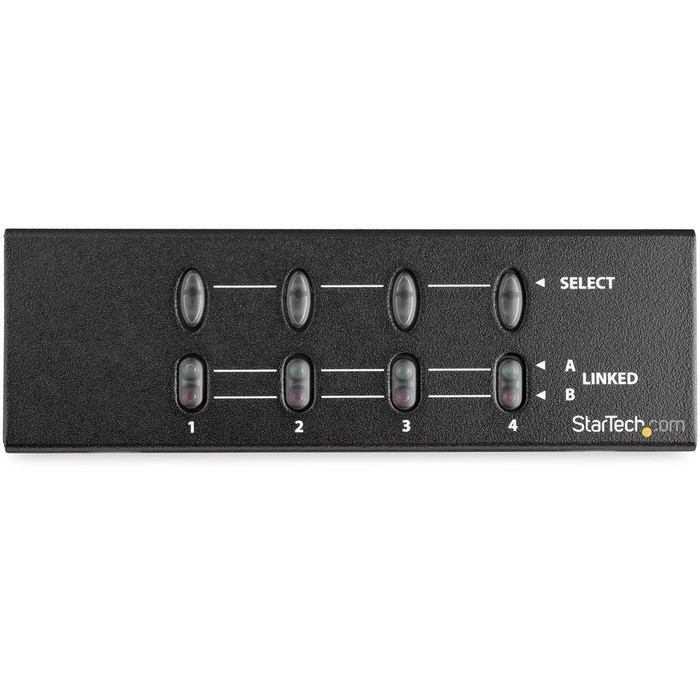

This 2x4 Matrix VGA Video Switch allows users to share two separate VGA input signals between up to four monitors.
Providing convenient push button control, the VGA Matrix Switcher/Splitter allows both of the VGA input signals to be switched/split for display on any of the connected VGA displays (up to four) - in turn, ensuring centralized control of the VGA signal output destination at the push of a button.
To ensure optimized VGA distribution and signal management even over longer distance signal transmissions, the VGA Matrix Switcher/Splitter features a built-in signal booster that facilitates installation of displays at distances of up to 210ft away from the source computer, while maintaining flawless signal integrity. The switcher/splitter offers high video bandwidth (250 Mhz) capability, providing display resolutions of up to 1920 x 1440 pixels.
Designed to provide maximum control while saving space and eliminating clutter.
More from the Manufacturer
-
SKU:
- 10239840
Manufacturer:
StarTech.com
Manufacturer Part Number:
ST224MX
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
2x4 High Resolution Matrix VGA Video Switch
Packaged Quantity:
1
Product Type:
Video Switchbox
Connectivity Technology:
Cable
Number of Input Devices Supported:
2
Device Supported:
Computer,Display
Number of Displays Supported:
4
Maximum Video Resolution:
1920 x 1440
VGA In:
Yes
VGA Out:
Yes
Number of VGA Inputs:
2
Number of VGA Outputs:
4
Maximum Operating Distance:
210 ft
Form Factor:
Desktop
Height:
1.7"
Width:
3"
Depth:
7.9"
Weight (Approximate):
1.04 lb
Package Contents:
- 2x4 High Resolution Matrix VGA Video Switch
- 1 x Power Adapter
- 1 x Instruction Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE,REACH
Country of Origin:
Taiwan
TAA Compliant:
Yes
Limited Warranty:
2 Year
sku variation:
The StarTech.com ST224MX is also known as STA-ST224MX or ST224MX
Brand Logo:
https://content.etilize.com/Brand-Logo/10239840.jpg
Short Description:
Startech, 2X4 VGA Matrix Switch - High Resolution VGA Video Matrix Switch - 1920X1440 @ 60HZ
Additional-pdf1:
https://content.etilize.com/Additional-pdf1/10239840.pdf
Additional-pdf2:
https://content.etilize.com/Additional-pdf2/10239840.pdf
