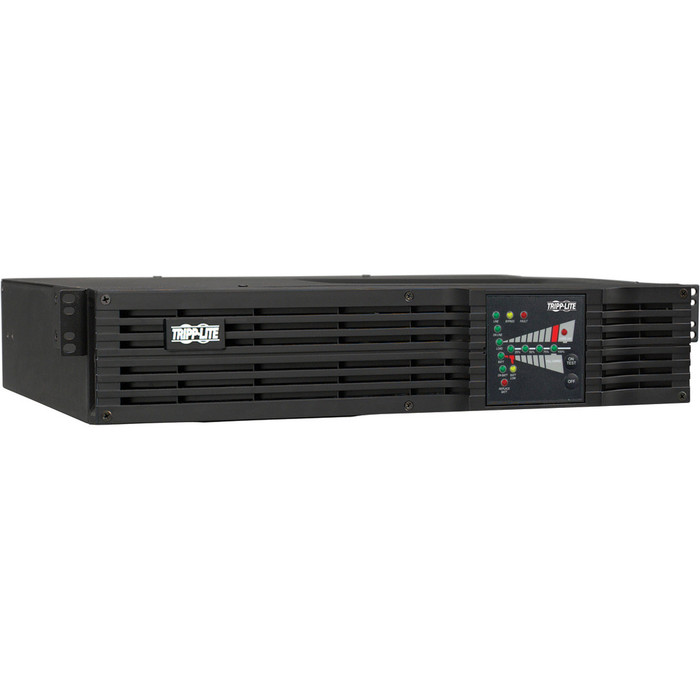

SmartOnline SU2200RTXL2UA 2200VA Tower/Rack Mountable UPS ideal for protection of critical 120V equipment in server rooms, internetworking closets and telecommunications systems in rack mount or tower applications. Common applications include corporate or departmental servers, workstations, hubs, routers, bridges, CAD/CAM workstations, concentrators, IP telephony and traditional PBX switching systems.
-
SKU:
- 10594752
Manufacturer:
Tripp Lite by Eaton
Manufacturer Part Number:
SU2200RTXL2UA
Manufacturer Website Address:
http://www.tripplite.com
Brand Name:
Tripp Lite
Product Line:
SmartOnline
Product Model:
SU2200RTXL2UA
Product Name:
SmartOnline SU2200RTXL2UA 2200VA Tower/Rack Mountable UPS
Product Type:
Double Conversion Online UPS
Plug/Connector Type:
NEMA 5-20P
Receptacle Type:
NEMA 5-15/20R,NEMA L5-20R
Receptacle Detail:
1 x NEMA 5-15/20R,6 x NEMA L5-20R
Dataline Protection:
RJ-45
Load Capacity:
2200 VA/1600 W
Input Voltage:
110 V AC,120 V AC
Output Voltage:
110 V AC,120 V AC
Network Management:
SNMP Manageable
Serial Port:
Yes
USB:
Yes
Backup/Run Time (Full Load):
4.50 Minute
Backup/Run Time (Half Load):
14 Minute
Hot Swappable:
Yes
Typical Battery Recharge Time:
5 Hour
Height:
3.5"
Width:
17.5"
Depth:
19"
Rack Height:
2U
Form Factor:
Tower
Weight (Approximate):
47.40 lb
Package Contents:
- SmartOnline SU2200RTXL2UA 2200VA Tower/Rack Mountable UPS
- PowerAlert software CD-ROM and complete cabling
- Mounting hardware for 4 post rack enclosures
- Instruction manual with warranty information
Software Included:
PowerAlert UPS Monitoring Software
Country of Origin:
China
Limited Warranty:
2 Year
sku variation:
The Tripp Lite SU2200RTXL2UA is also known as TRI-SU2200RTXL2UA or SU2200RTXL2UA
Brand Logo:
https://content.etilize.com/Brand-Logo/10594752.jpg
Short Description:
Tripp Lite, Eol, No Replacement, 2200VA UPS Smartonline Rack/tower Puresine 120V 7 Outlets - (use BP48V24-2U OR BP48V60RT-3U For Extended Run)
