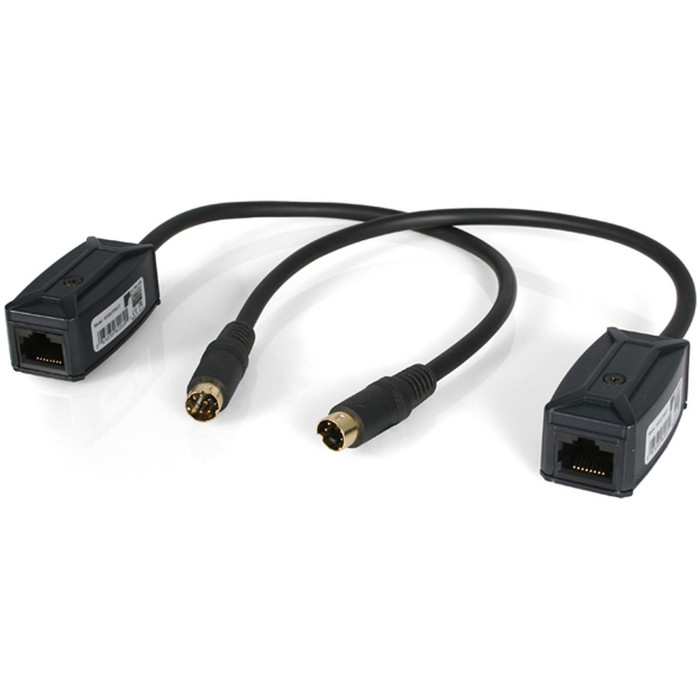

The SVIDUTPEXT S-Video Extender over Cat 5 lets you extend an S-Video source signal up to 200 meters over Cat 5 cable, allowing you to configure your S-Video A/V setup as needed.
The S-Video over Cat 5 extender is comprised of two extender units that can be used interchangeably - one is installed near the video signal source, the other to be placed near the desired display, up to an impressive 200m away. With no software or power adapter requirements, installation and setup is quick and hassle-free. The included installation/mounting kit, and 20cm S-Video cable offer flexibility in the placement of the transmitter and receiver units.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
-
SKU:
- 1010110760
Manufacturer:
StarTech.com
Manufacturer Part Number:
SVIDUTPEXT
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
S-Video Extender over Cat 5
Product Type:
Video Extender Transmitter/Receiver
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
656.17 ft
Graphics Modes:
VGA
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Product Color:
Black
Transmitter Height:
0.90"
Transmitter Width:
1"
Transmitter Depth:
2.70"
Receiver Height:
0.90"
Receiver Width:
1"
Receiver Depth:
2.70"
Transmitter Weight (Approximate):
2.80 oz
Receiver Weight (Approximate):
2.80 oz
Package Contents:
- S-Video over Cat5 Extender
- 1 x Instruction Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE,REACH
Country of Origin:
Taiwan
TAA Compliant:
Yes
Limited Warranty:
2 Year
sku variation:
The StarTech.com SVIDUTPEXT is also known as STA-SVIDUTPEXT or SVIDUTPEXT
Brand Logo:
https://content.etilize.com/Brand-Logo/1010110760.jpg
Short Description:
Startech, S-video Extender Over CAT 5
Additional-pdf1:
https://content.etilize.com/Additional-pdf1/1010110760.pdf
Additional-pdf2:
https://content.etilize.com/Additional-pdf2/1010110760.pdf
