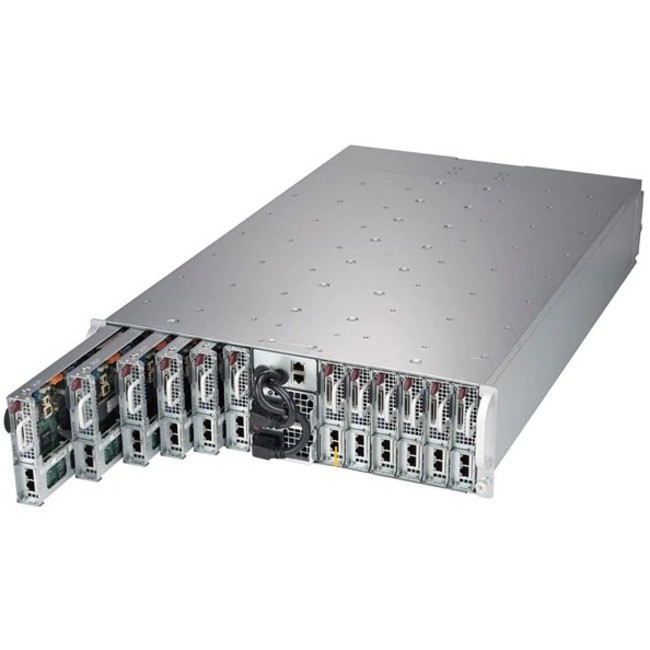

The Supermicro MicroCloud modular server system provides 12 or 8 modular server nodes conveniently integrated into a compact 3U chassis that is only 29.5" or 23" deep. These cable-free, hot-pluggable server nodes operate independently. Each node is powered by an Intel® Xeon® E-2100 processor, and provides up to 64GB of ECC DDR4 2666MHz UDIMM memory, available for PCI-E 3.0 x8 expansion slot for low profile add-on card, and SATA 3.0 hard disk drives.
-
SKU:
- 1055346574
Manufacturer:
Supermicro Computer, Inc
Manufacturer Part Number:
SYS-5039MC-H12TRF
Manufacturer Website Address:
http://www.supermicro.com
Brand Name:
Supermicro
Product Line:
SuperServer
Product Model:
5039MC-H12TRF
Product Name:
SuperServer SYS-5039MC-H12TRF (Black)
Product Type:
Barebone System
Number of Nodes:
12
Number of Processors Supported:
1
Processor Socket:
Socket H4 LGA-1151
Processor Supported:
Xeon,Core i3,Celeron,Pentium
64-bit Processing:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C246
Maximum Memory Supported:
128 GB
Memory Technology:
DDR4 SDRAM
Memory Standard:
DDR4-2666/PC4-21300
Number of Total Memory Slots:
4
Controller Type:
Serial ATA/600
RAID Supported:
Yes
Graphics Controller Manufacturer:
ASPEED
Graphics Controller Model:
AST2500
Ethernet Technology:
Gigabit Ethernet
Number of Total Expansion Slots:
1
Number of PCI Express x4 Slots:
1
Number of SATA Interfaces:
2
Input Voltage:
230 V AC
Number of Power Supplies Installed:
2
Maximum Power Supply Wattage:
2000 W
Product Color:
Black
Form Factor:
Rack-mountable
Rack Height:
3U
Height:
5.2"
Width:
17.5"
Depth:
29.5"
Weight (Approximate):
131.99 lb
Package Contents:
- SuperServer SYS-5039MC-H12TRF (Black)
- 12 x Super X11SCE-F Motherboard
- 1 x 3U Chassis
- 12 x AOM-BPN-MC12S
- 12 x AOM-CGP-I2M-O-P
- 1 x [NR]AOM-GEM-001-O-P
- 1 x [NR]AOM-LAN-MC12S-P
- 12 x
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Limited Warranty:
3 Year
sku variation:
The Supermicro SYS-5039MC-H12TRF is also known as SUP-SYS5039MCH12TRF or SYS5039MCH12TRF
Brand Logo:
https://content.etilize.com/Brand-Logo/1055346574.jpg
Short Description:
Super Micro, 3U Microcloud System, X11SCE-F, CSE-939HC-R2K04BP, HF, Ncnr Required
Accessories:
1025440907
