The Touch™ TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.
Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.
-
SKU:
- 1023500126
Manufacturer:
Datalogic S.p.A
Manufacturer Part Number:
TD1120-BK-90K1
Manufacturer Website Address:
http://www.datalogic.com
Brand Name:
Datalogic
Product Line:
Touch
Product Series:
TD1100
Product Model:
90 Lite
Product Name:

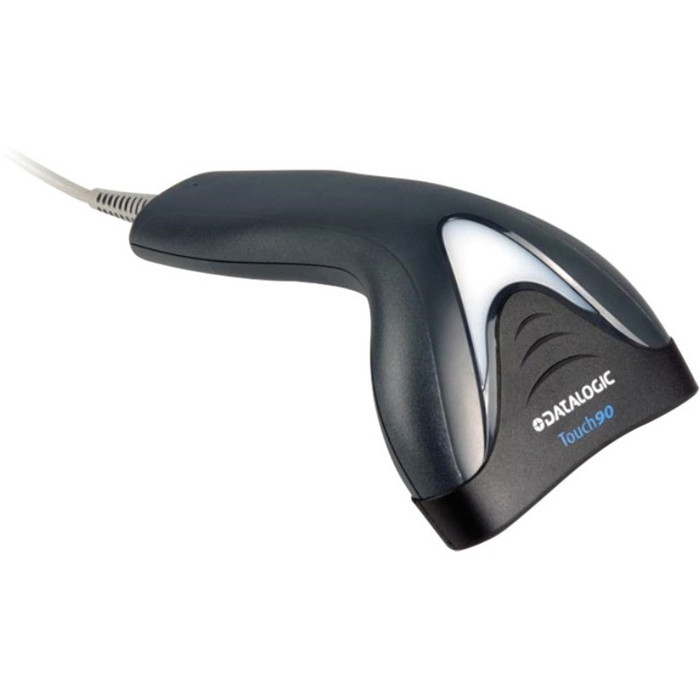

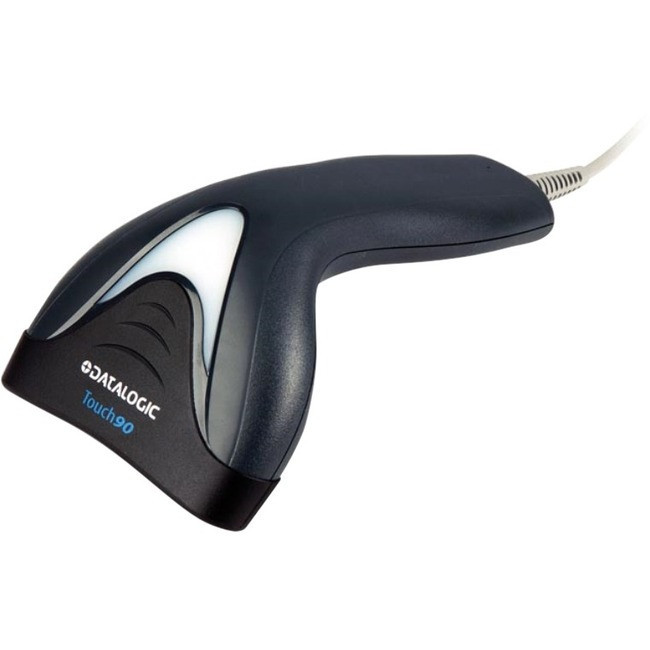

General Purpose Corded Mobile Contact Linear Imager Barcode Scanner Kit
Packaged Quantity:
3
Product Type:
Barcode Scanner Kit
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
1D / Linear Codes:
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
Stacked Codes:
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnid
Image Sensor Type:
Imager,Linear
Scan Pattern:
Omni-directional
Scanner Range:
Short Range
Scanning Distance:
5.91"
Cable Type Included:
USB
Reading Angle (Skew):
70°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
45°
Maximum Ambient Light:
20000 lux
Drop Specification:
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Minimum Print Contrast:
25%
Minimum Element Resolution (Code 39):
7.5 mil
Maximum Element Resolution (Code 39):
10 mil
Host Interface:
USB
Form Factor:
Mobile
Product Color:
Black
Height:
6.7"
Width:
2.7"
Depth:
4.1"
Weight (Approximate):
5.40 oz
Ingress Protection (IP) Rating:
IP30
Application/Usage:
Library,Government,Industrial,Retail
Country of Origin:
Vietnam
sku variation:
The Datalogic TD1120-BK-90K1 is also known as DAT-TD1120BK90K1 or TD1120BK90K1
Brand Logo:
https://content.etilize.com/Brand-Logo/1023500126.jpg
Short Description:
Datalogic Adc, Touch 90 Lite, Black, USB Interface KIT (includes TD1120-BK-910, Holder HLD-T010-65-BK AND USB Cable 90A052065)
User-Manual:
https://content.etilize.com/User-Manual/1023500126.pdf
