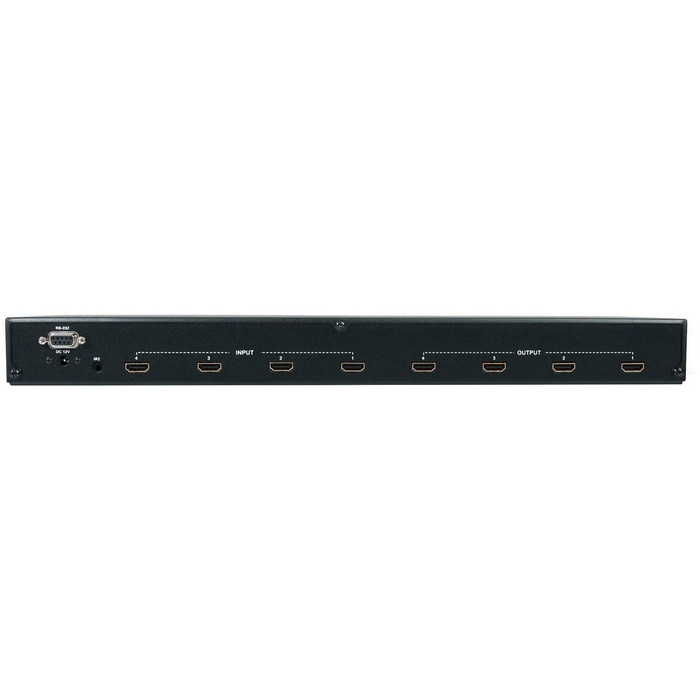

The VS440HDMI 4x4 HDMI® Audio/Video Matrix Switch/Splitter (with Audio and RS232) lets you share up to 4 distinct HDMI or DVI inputs (using HDMI to DVI adapters - not included), with audio, between 4 independent displays or projectors.
Providing convenient front push-button and RS232 PC software control, this matrix switch allows each input and the corresponding audio to be switched individually, meaning that different A/V sources can be shown on each output, or a single source can be output to several offering maximum flexibility.
The switcher features a front panel LCD display for easy status monitoring, plus an included remote control and IR extender module for simple control from a distance.
Designed to provide maximum functionality while saving space, the HDMI Video Matrix Switch can be used as a standalone solution or rack-mounted using ear-mounts (included).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
-
SKU:
- 1020121131
Manufacturer:
StarTech.com
Manufacturer Part Number:
VS440HDMI
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
4x4 HDMI Matrix Video Switch Splitter with Audio and RS232
Packaged Quantity:
1
Product Type:
Audio/Video Switchbox
Connectivity Technology:
Cable
Number of Input Devices Supported:
4
Device Supported:
Computer,Display,Media Player,Digital Signage
Number of Displays Supported:
4
Graphics Modes:
WUXGA
Maximum Video Resolution:
1920 x 1200
Scan Format:
1080p
HDMI In:
Yes
HDMI Out:
Yes
Number of HDMI Inputs:
4
Number of HDMI Outputs:
4
Maximum Operating Distance:
32.81 ft
Form Factor:
Rack-mountable
Height:
1.7"
Width:
7.3"
Depth:
17.3"
Weight (Approximate):
5.29 lb
Package Contents:
- 4x4 HDMI Matrix Video Switch Splitter with Audio and RS232
- 2 x Rack Mount Brackets
- 1 x RS232 Cable
- 1 x IR Remote Control
- 6 x Screws for rack mount brackets
- 1 x Universal Power Adapter (US/UK/EU/AU
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE,REACH
Country of Origin:
Taiwan
TAA Compliant:
Yes
Limited Warranty:
2 Year
