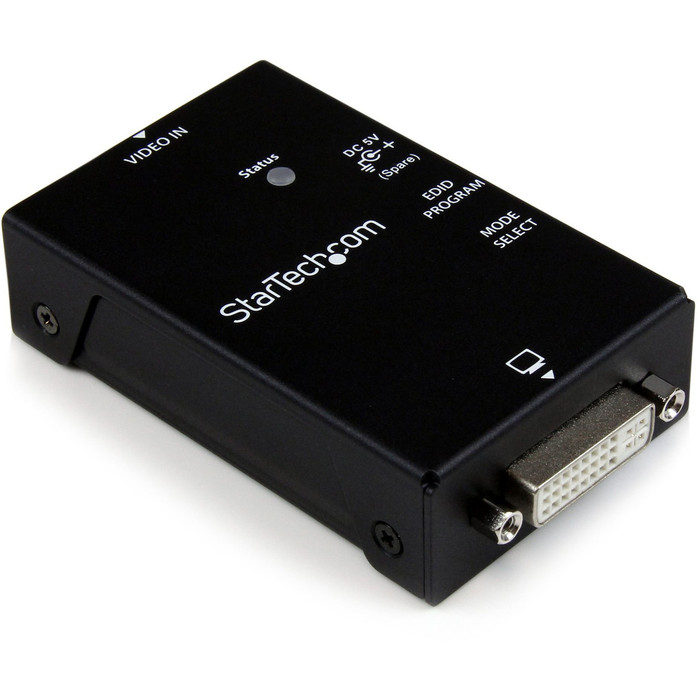

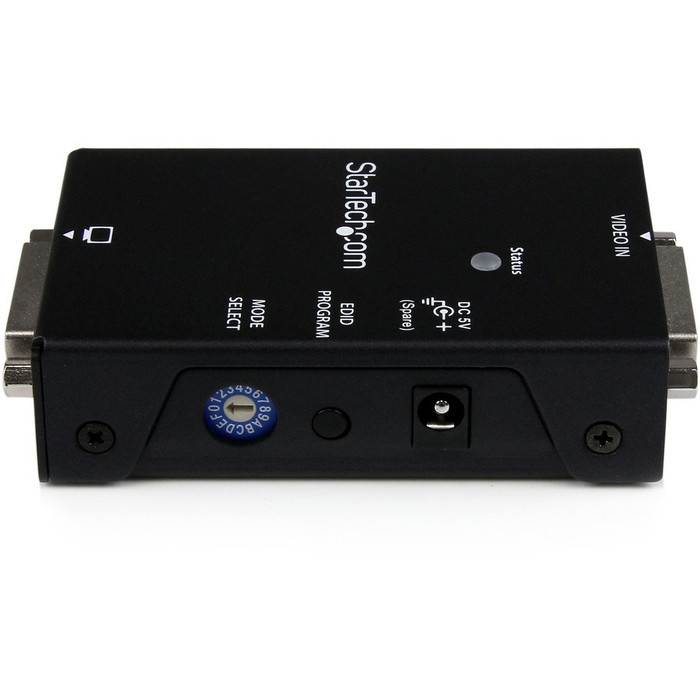

The VSEDIDDVI DVI EDID Emulator enables you to capture and retain Extended Display Identification Data from a monitor, which can then be connected to the video signal source (Video Extender, KVM Switch, etc.) to pass the EDID information and ensure the proper video settings are maintained.
EDID information contains important display settings such as maximum image size, color characteristics, factory pre-set timings, frequency range limits, etc., and since most video extender systems don't offer EDID communication between the source and remote display, the DVI EDID Emulator is a perfect workaround for ensuring the optimum signal is provided to the display to help prolong the life of your displays.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
-
SKU:
- 1022377116
Manufacturer:
StarTech.com
Manufacturer Part Number:
VSEDIDDVI
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
DVI DDC EDID Ghosting Emulator with EDID Copy
Packaged Quantity:
1
Product Type:
Video Emulator
Functions:
Video Emulation
Maximum Resolution:
2560 x 1600
Platform Supported:
PC
Audio Line In:
No
Audio Line Out:
No
DVI:
Yes
Height:
0.9"
Width:
2"
Length:
3.1"
Weight (Approximate):
0.27 lb
Package Contents:
- DVI DDC EDID Ghosting Emulator with EDID Copy
- 1 x USB to DC Power Cable
- 1 x Pack, Rubber Feet
- 1 x Instruction Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS,WEEE,REACH
Country of Origin:
Taiwan
TAA Compliant:
Yes
Limited Warranty:
2 Year
sku variation:
The StarTech.com VSEDIDDVI is also known as STA-VSEDIDDVI or VSEDIDDVI
