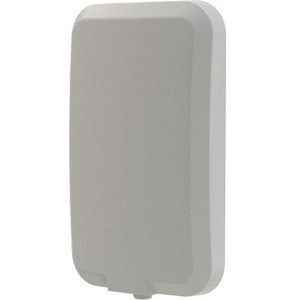

The WMM4G-6-60 is a high directional gain 4x4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.
- Supports full Cat18 (617-960/1710-6000MHz) 4x4 MiMo 4G/5G
- High Directional gain 6-9dBi
- Wall Mount or Mast Mount
- Ideal for Branch Networks and Failover
The weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided. Supplied with fitted low loss double shielded cable for cellular/LTE the WMM4G-6-60 minimises exposed connector joints and simplifies cable management for easy installation.
-
SKU:
- 1064649382
Manufacturer:
Panorama Antennas Ltd
Manufacturer Part Number:
WMM4G-6-60-5SP
Manufacturer Website Address:
http://www.panorama-antennas.com
Brand Name:
Panorama Antennas
Product Model:
WMM4G-6-60
Product Name:
WMM4G-6-60 4x4 MiMo 4G/5G Directional Antenna
Product Type:
Antenna
Directivity:
Directional
Operating Frequency Range:
617 MHz to 960 MHz,1710 MHz to 6000 MHz
Antenna Gain (Isotropic):
9 dBi
Connector Type:
SMA
Product Color:
White
Height:
3.43"
Width:
12.09"
Depth:
19.96"
Form Factor:
Wall/Mast/Screw/Flush
Application/Usage:
Cellular Network
sku variation:
The Panorama Antennas WMM4G-6-60-5SP is also known as PAN-WMM4G6605SP or WMM4G6605SP
Brand Logo:
https://content.etilize.com/Brand-Logo/1064649382.jpg
Short Description:
Panorama Antennas, Wall MNT 4X4 Mimo Gain ANT 4G/5G 5M Sma(m)
