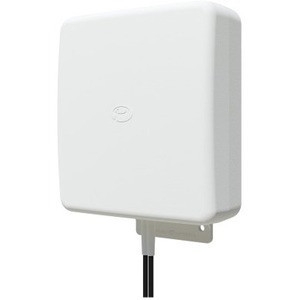

The WMM8G-7-38 antenna is a high gain directional 2x2 MIMO signal boosting antenna for 4G and some 5G networks. Incorporating two separately fed wideband elements in a single housing the WMM8G is equipped to provide client side MIMO and diversity support for 4G and some 5G networks. The rugged, weatherproof housing is designed for wall mounting.
- Supports 2x2 MiMo 2G/3G/4G and some 5G networks
- High Directional gain 6-8dBi
- Wall Mount or Mast Mount
Wall and mast mounting brackets are provided. 5 metres of fitted low loss double shielded twin cable minimizes exposed connector joints and simplifies cable management for easy installation.
The WMM8G-7-38-5SP and WMM8G-7-38-03NJ are upgraded versions of the popular WMM8G-7-27-5SP and WMM8G-7-27-03NJ antennas covering the new 3.4-3.8GHz frequency bands.
-
SKU:
- 1059686274
Manufacturer:
Panorama Antennas Ltd
Manufacturer Part Number:
WMM8G-7-38-03NJ
Manufacturer Website Address:
http://www.panorama-antennas.com
Brand Name:
Panorama Antennas
Product Model:
WMM8G-7-38
Product Name:
WMM8G-7-38 MiMo Directional Antenna
Product Type:
Antenna
Directivity:
Directional
Operating Frequency Range:
698 MHz to 960 MHz,1710 MHz to 3800 MHz,700 MHz to 3800 MHz
Antenna Gain (Isotropic):
9 dBi
Connector Type:
N-connector
Product Color:
White
Height:
9.06"
Width:
7.09"
Depth:
3.70"
Form Factor:
Wall/Mast/Screw
Application/Usage:
Cellular Network
Package Contents:
- WMM8G-7-38 MiMo Directional Antenna
- Wall Mount Bracket
- Mast Mount Bracket
Environmentally Friendly:
Yes
Environmental Certification:
WEEE,RoHS 3,REACH
sku variation:
The Panorama Antennas WMM8G-7-38-03NJ is also known as PAN-WMM8G73803NJ or WMM8G73803NJ
Brand Logo:
https://content.etilize.com/Brand-Logo/1059686274.jpg
Short Description:
Panorama Antennas, Mimo Wall MNT Gain ANT 0.3M N(f)
